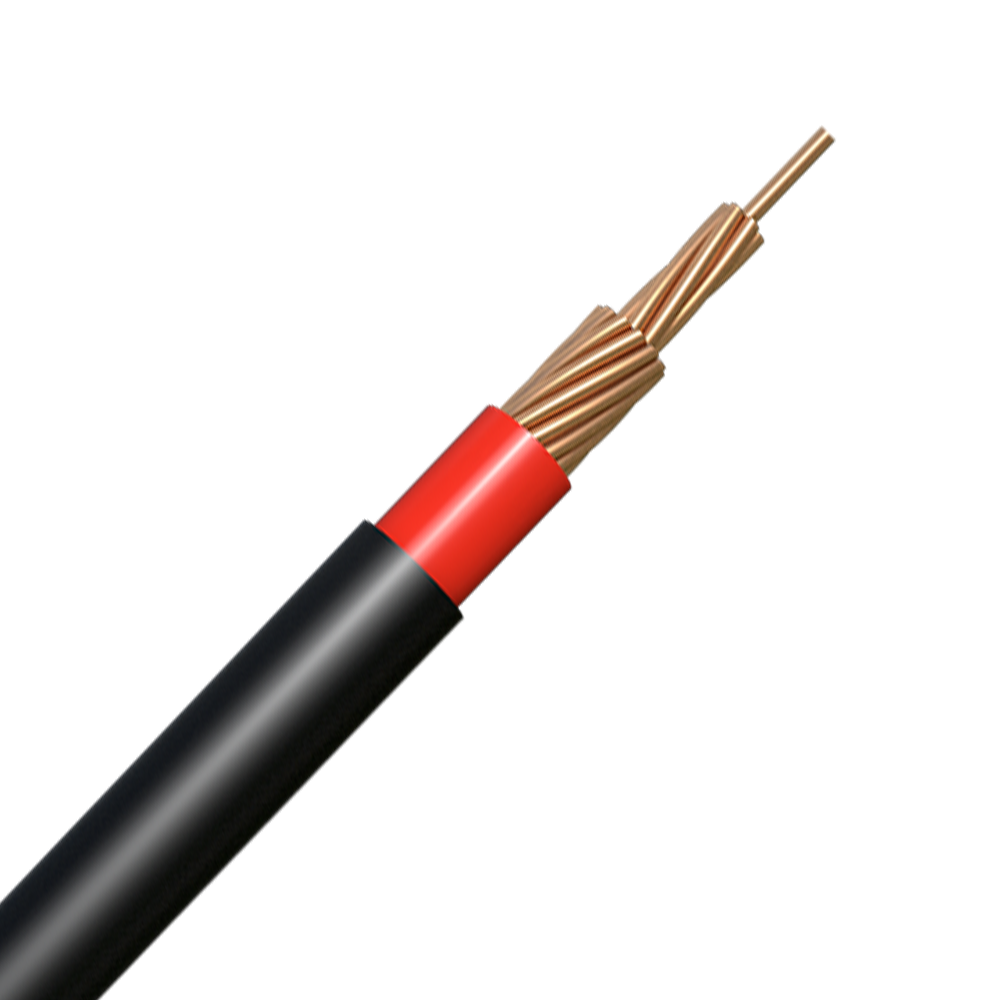

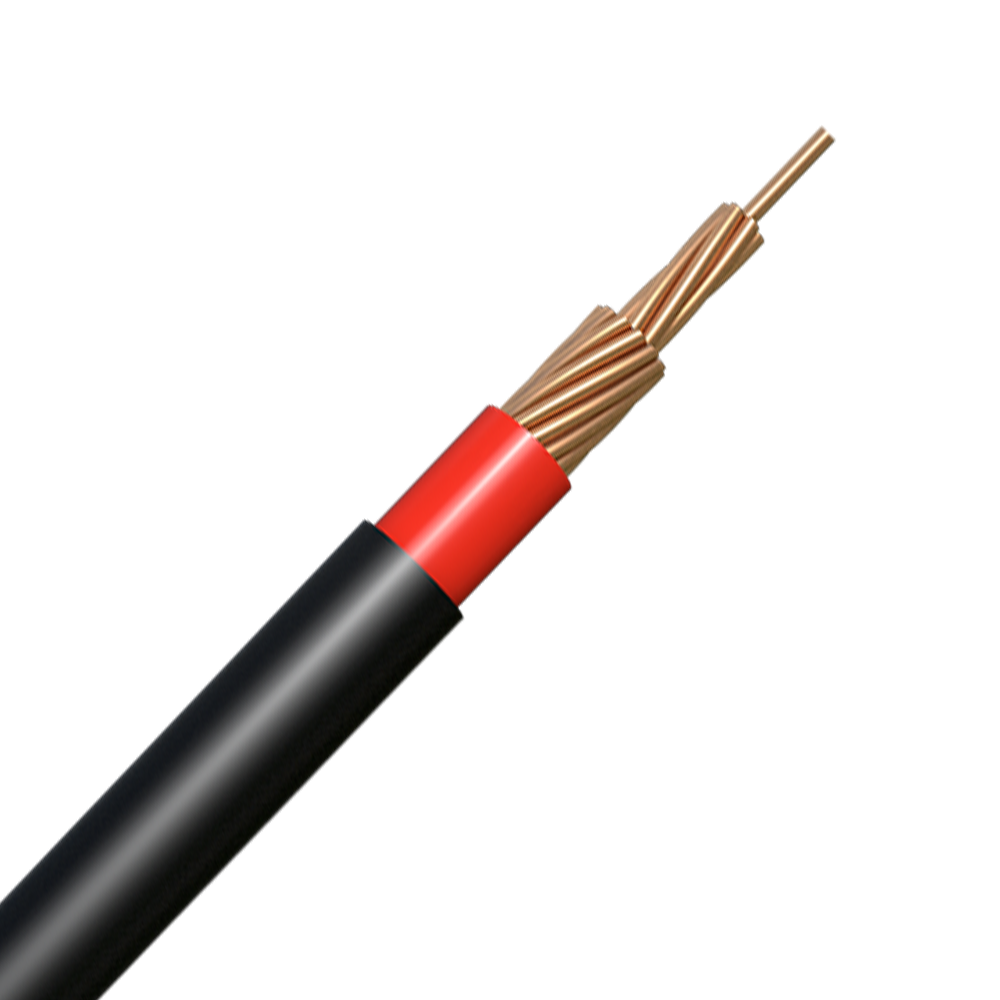

0.6/1KV XLPE insulated cable is the most widely used product in the power system at present, its structure is stable, can be selected according to the use of different cable specifications such as three-phase four-wire system, three-five-wire system, etc., wide cross-section range, conductor materials can be selected aluminum, copper, aluminum and other materials. It can be manufactured according to different national standards according to user requirements.
Features
The product has good performance on electrical characteristic, chemical resistance, such as acid resistance,alkali resistance and organic solvent resistance. The product can be laid on any head drop condition even vertically in any place, that is to say, the cable can be laid without limit on head drop.Compared with polyvinyl chloride insulation material, it has the advantages of light weight, high temperature for long term use of conductors and large safety factor.
Application
The product is suitable for use in power distribution network, industrial equipment, and other fields used for fixed installation in ac 50 hz, rated voltage 0.6/1kv power transmission and distribution lines main function is to transport electricity. This product is usually used under the condition of product some special condition is not applicable to occasions such as aerial, underwater, ship, submarine, nuclear power station, etc
Construction

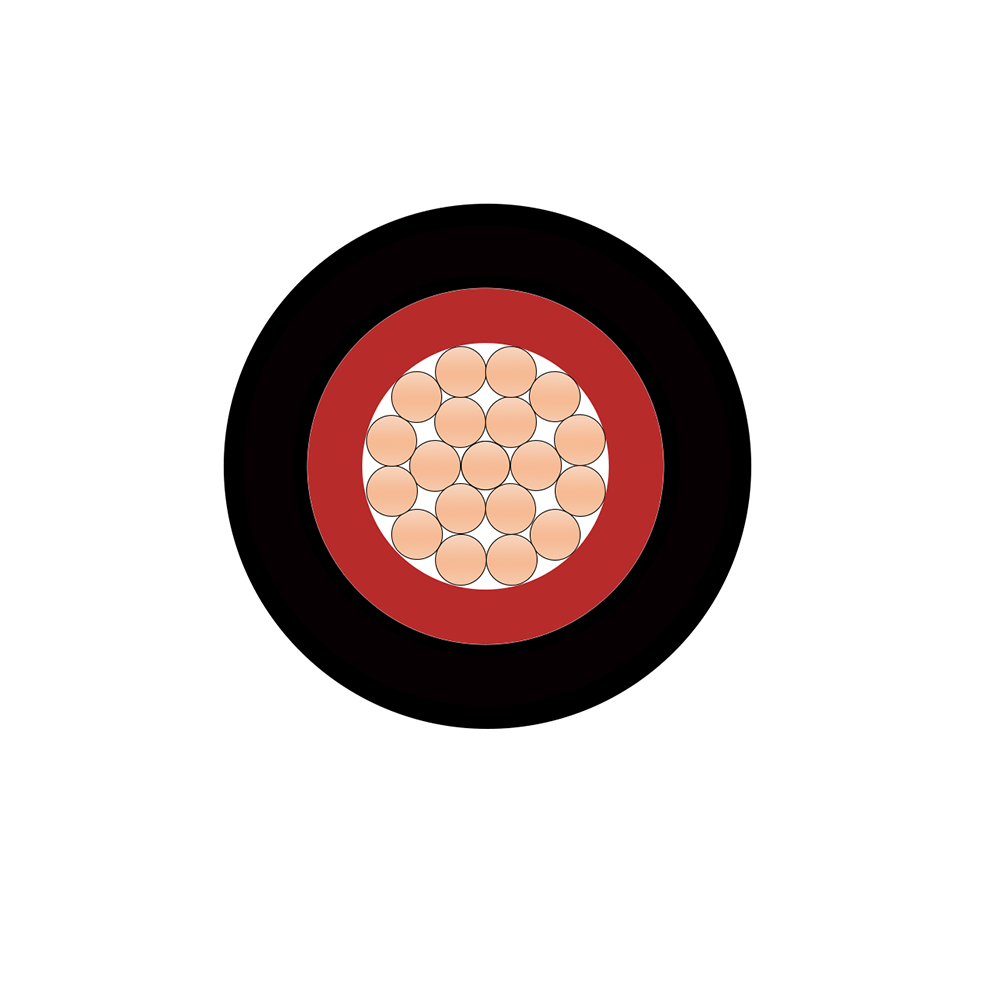

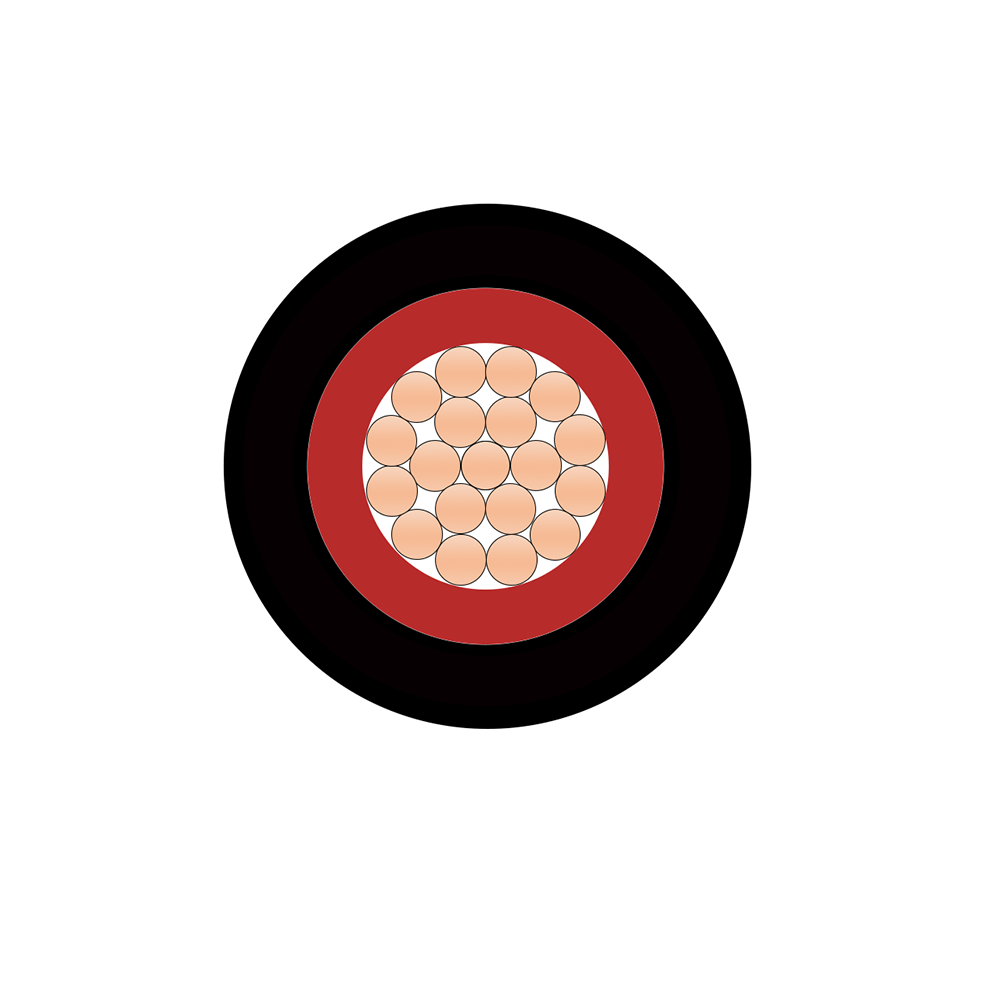

General product structure diagram is as follows (N2XY)
Performance (IEC 60502-1)
| Nos×mm2 | Nominal Thickness of Insulation mm | Approx Copper Overall Dia. mm | Approx Copper Weight kg/km | Approx Aluminium Overall Dia. mm | Approx Aluminium Weight kg/km | Max. DC Resistance at 20℃ Copper Ohm/km | Max. DC Resistance at 20℃ Aluminium Ohm/km | Recommending Current Rating A Copper In Ground | Recommending Current Rating A Copper In Air | Recommending Current Rating A Aluminium In Ground | Recommending Current Rating A Aluminium In Air |
| 1×1.5 | 0.7 | 5.7 | 44 | - | - | 12.1 | - | 45 | 32 | - | - |
| 1×2.5 | 0.7 | 6.1 | 56 | 6.1 | 33 | 7.41 | 12.1 | 59 | 42 | 46 | 33 |
| 1×4 | 0.7 | 6.5 | 73 | 6.5 | 40 | 4.61 | 7.41 | 77 | 56 | 61 | 44 |
| 1×6 | 0.7 | 7 | 95 | 7 | 49 | 3.08 | 4.61 | 97 | 70 | 79 | 57 |
| 1×10 | 0.7 | 7.9 | 138 | 7.9 | 64 | 1.83 | 3.08 | 130 | 97 | 100 | 75 |
| 1×16 | 0.7 | 8.8 | 198 | 8.8 | 86 | 1.15 | 1.91 | 170 | 125 | 135 | 99 |
| 1×25 | 0.9 | 11 | 309 | 11 | 131 | 0.727 | 1.2 | 220 | 165 | 170 | 125 |
| 1×35 | 0.9 | 12 | 409 | 12 | 166 | 0.524 | 0.868 | 265 | 200 | 205 | 155 |
| 1×50 | 1 | 13.2 | 560 | 13.2 | 219 | 0.387 | 0.641 | 320 | 245 | 245 | 190 |
| 1×70 | 1.1 | 15.1 | 764 | 15.1 | 292 | 0.268 | 0.443 | 295 | 305 | 305 | 240 |
| 1×95 | 1.1 | 16.9 | 1016 | 16.9 | 379 | 0.193 | 0.32 | 475 | 375 | 370 | 290 |
| 1×120 | 1.2 | 18.5 | 1265 | 18.5 | 465 | 0.153 | 0.253 | 545 | 435 | 420 | 340 |
| 1×150 | 1.4 | 20.7 | 1579 | 20.7 | 580 | 0.124 | 0.206 | 610 | 500 | 475 | 390 |
| 1×185 | 1.6 | 22.8 | 1932 | 22.8 | 706 | 0.0991 | 0.164 | 695 | 580 | 540 | 450 |
| 1×240 | 1.7 | 25.6 | 2485 | 25.6 | 900 | 0.0754 | 0.125 | 810 | 685 | 630 | 535 |
| 1×300 | 1.8 | 28.2 | 3083 | 28.2 | 1106 | 0.0601 | 0.1 | 910 | 795 | 710 | 615 |
| 1×400 | 2 | 32.3 | 4082 | 32.3 | 1453 | 0.047 | 0.0778 | 1050 | 930 | 820 | 730 |
| 1×500 | 2.2 | 37.2 | 4951 | 37.2 | 1773 | 0.0366 | 0.0605 | 1190 | 108 | 940 | 850 |
| 1×630 | 2.4 | 42.2 | 6457 | 42.2 | 2297 | 0.0283 | 0.0469 | 1350 | 1250 | 1080 | 1000 |
| 1×800 | 2.6 | 47.1 | 8190 | 47.1 | 2890 | 0.0221 | 0.0367 | 1520 | 1440 | 1220 | 1160 |
| 1×1000 | 2.8 | 52.2 | 10230 | 52.2 | 3584 | 0.0176 | 0.0291 | 1690 | 1630 | 1380 | 1330 |
