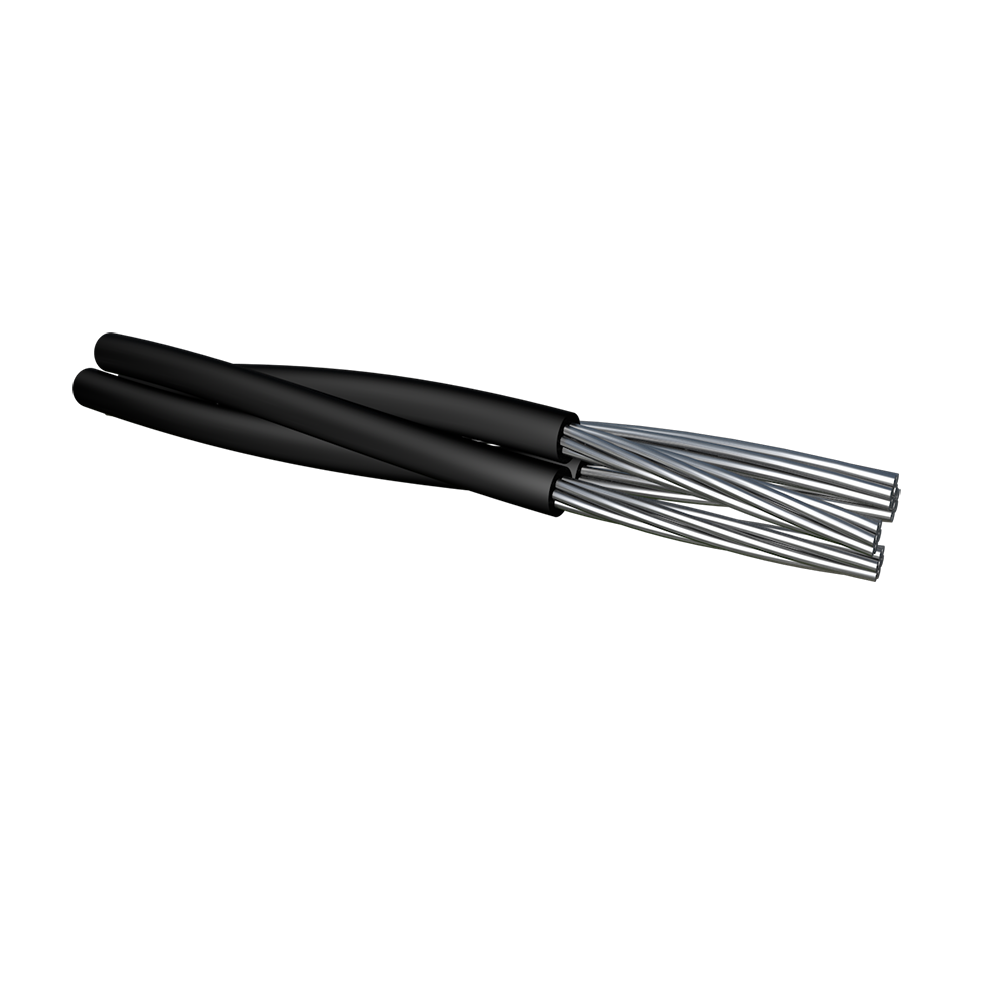

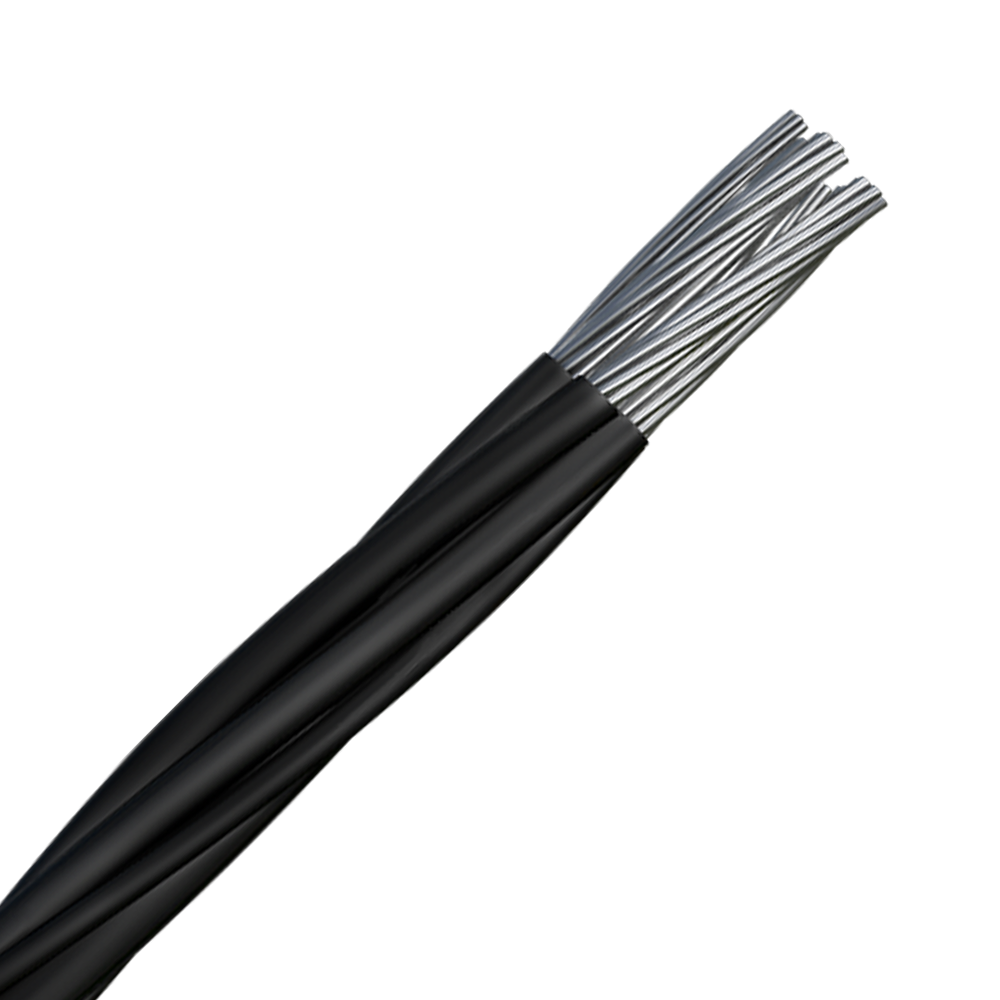

0.6/1KV overhead insulated cables are overhead wires with insulation. Conductors usually choose AAC, AAAC, ACSR twisted wires. The insulating material is 90°C XLPE.

Features

  1. Good insulation performance
  2. Good corrosion resistance
  3. Anti-external damage
  4. The strength meets the requirements.

Compared with ordinary aerial bare line ,It solves some of the difficulties encountered in the operation of traditional bare wire . The price is much cheaper than that of buried cable.

Application

It is used for urban and rural power grid transformation, road lighting and other lines. It is suitable for places with more lightning, luxuriant trees and high smoke concentration.

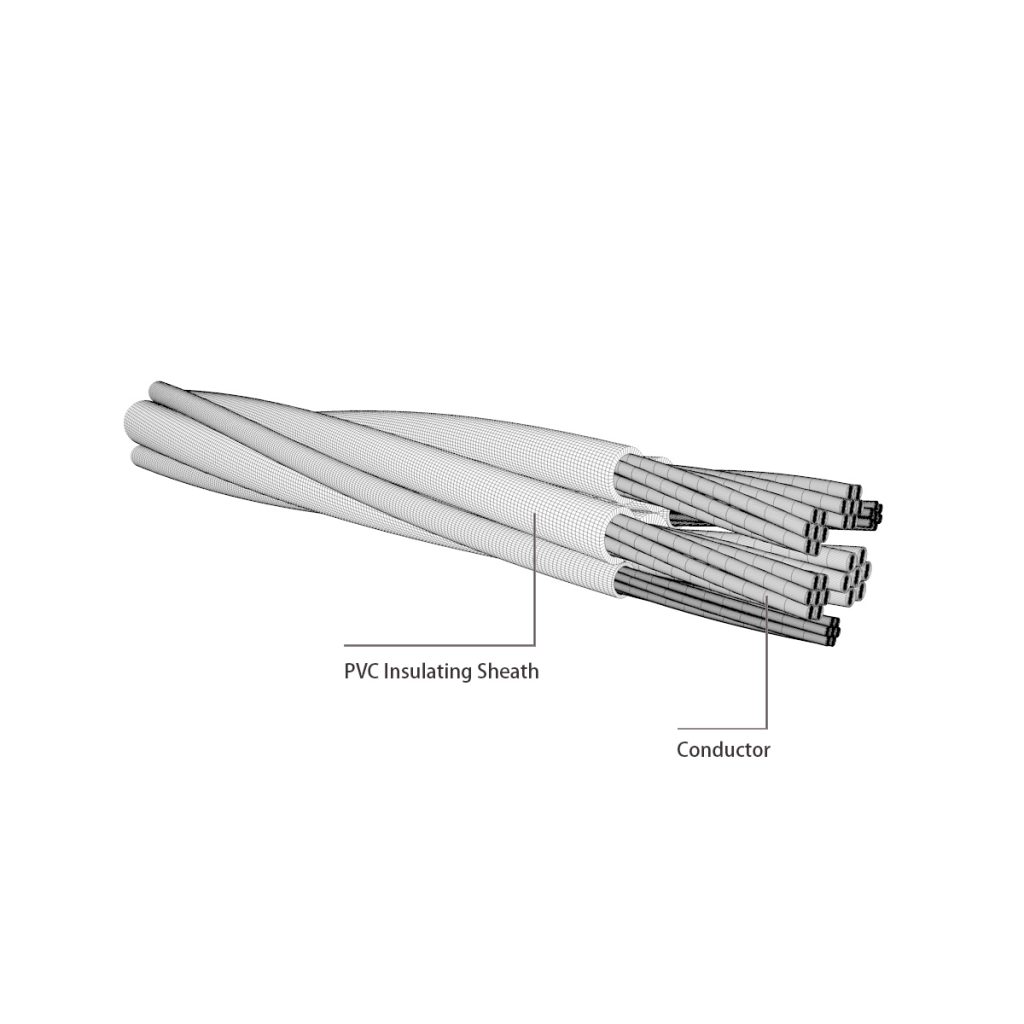

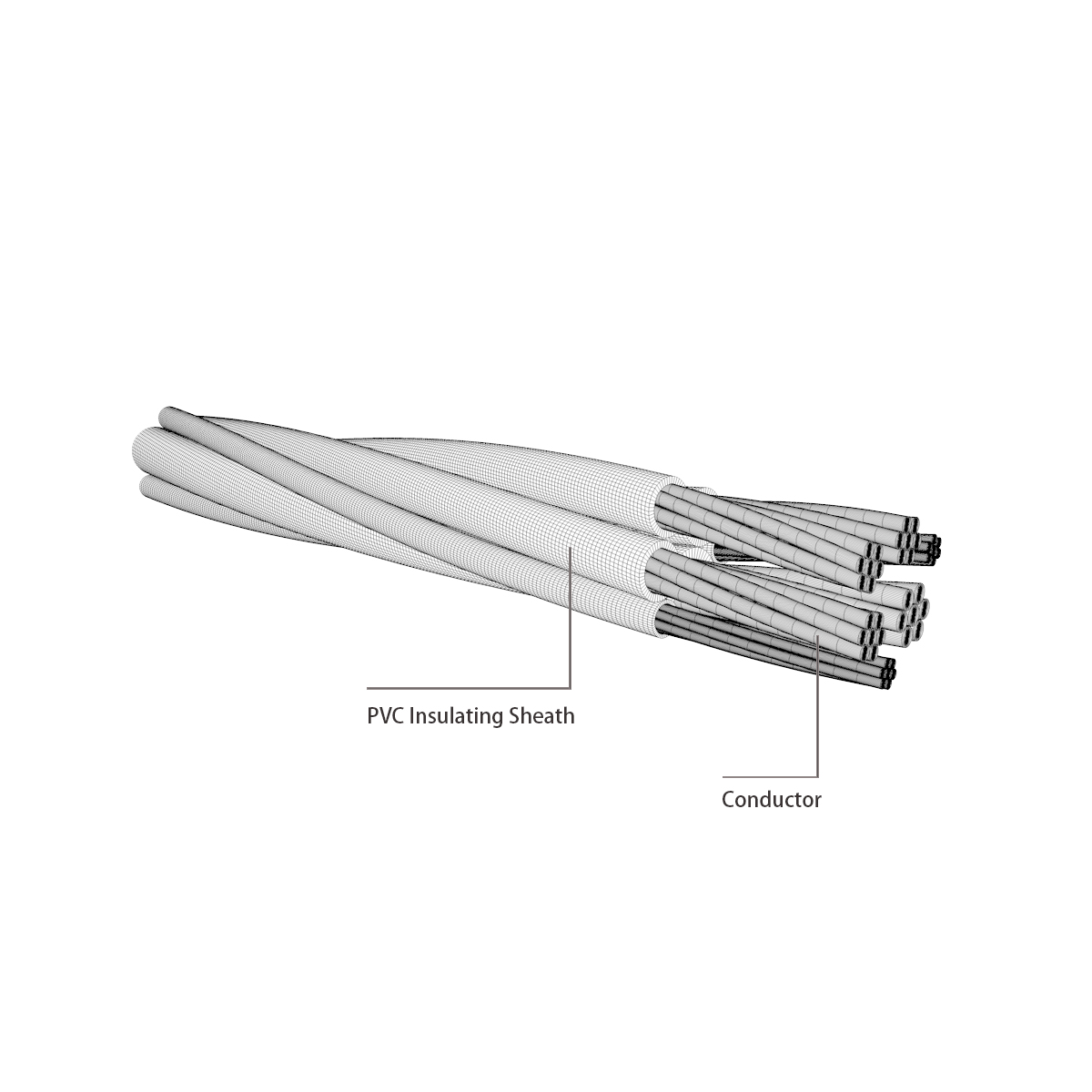

Construction

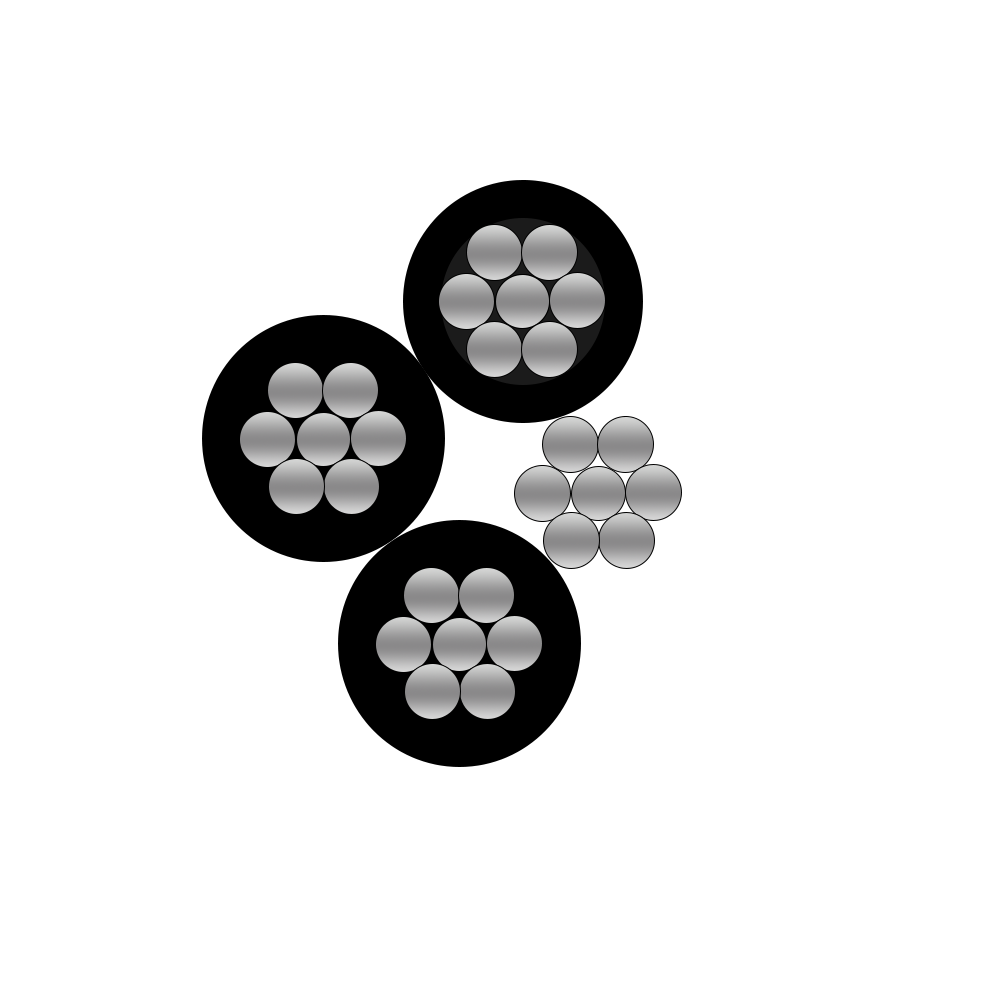

The 600V overhead insulated cable has a simple structure .It is composed of conductor and insulation.conductor material corresponds to the standard bare wire tight or not tight.

Performance

Number of
Cores ×  Cross-section		Phase core
Nominal Thickness of Insulation		Phase core
Min. Outer diameter of core		Neutral core
Nominal Thickness of Insulation		Neutral core
Min. Outer diameter of core		Lighting core
Nominal Thickness of Insulation		Lighting core
Min. Outer diameter of core		Twisted diameter of cableApprox. WeightBreaking load


(Neutral core)		Max. DC Resistance at 20℃


 (Phase core)		Current Rating

In air at 30℃

 (Phase core)
Nos×mm2mmmmmmmmmmmmmmkg/kmkNOhm/kmA
3×25+54.61.48.61.612.3--3053016.61.20112
3×35+54.61.6101.612.3--3378016.60.868138
3×50+54.61.611.11.612.3--3699016.60.641168
3×70+54.61.813.31.612.3--37.5114016.60.443213
3×70+701.813.31.512.9--41117020.50.443213
3×95+701.814.61.512.9--44137820.50.320258
3×120+701.815.61.512.9--46167227.50.253300
3×120+951.815.61.615.3--47177020.50.253300
3×150+701.717.31.512.9--48182027.50.206344
3×150+951.717.31.615.3--49196127.50.206344
3×25+54.6+1×161.48.61.612.31.27.03058116.61.20112
3×35+54.6+1×161.6101.612.31.27.03378016.60.868138
3×50+54.6+1×161.611.11.612.31.27.03699016.60.641168
3×70+54.6+1×161.813.31.612.31.27.037.5114016.60.443213
3×70+54.6+1×251.813.31.612.31.48.640118016.60.443213
3×70+70+1×161.813.31.512.91.27.041117020.50.443213
3×95+70+1×161.814.61.512.91.27.044137820.50.320258
3×120+70+1×161.815.61.512.91.27.046167220.50.253300
3×120+95+1×161.815.61.615.31.27.047177027.50.253300
3×150+70+1×161.717.31.512.91.27.048182020.50.206344
3×150+95+1×161.717.31.615.31.27.049196127.50.206344
3×25+54.6+2×161.48.61.612.31.27.03058116.61.20112
3×35+54.6+2×161.6101.612.31.27.03378016.60.868138
3×50+54.6+2×161.611.11.612.31.27.03699016.60.641168
3×70+54.6+2×161.813.31.612.31.27.037.5114016.60.443213
3×70+54.6+2×251.813.31.612.31.48.640118016.60.443213
3×70+70+2×161.813.31.512.91.27.041117020.50.443213
3×95+70+2×161.814.61.512.91.27.044137820.50.320258
3×120+70+2×161.815.61.512.91.27.046167220.50.253300
3×120+95+2×161.815.61.615.31.27.047177027.50.253300
3×150+70+2×161.717.31.512.91.27.048182020.50.206344
3×150+95+2×161.717.31.615.31.27.049196127.50.206344
