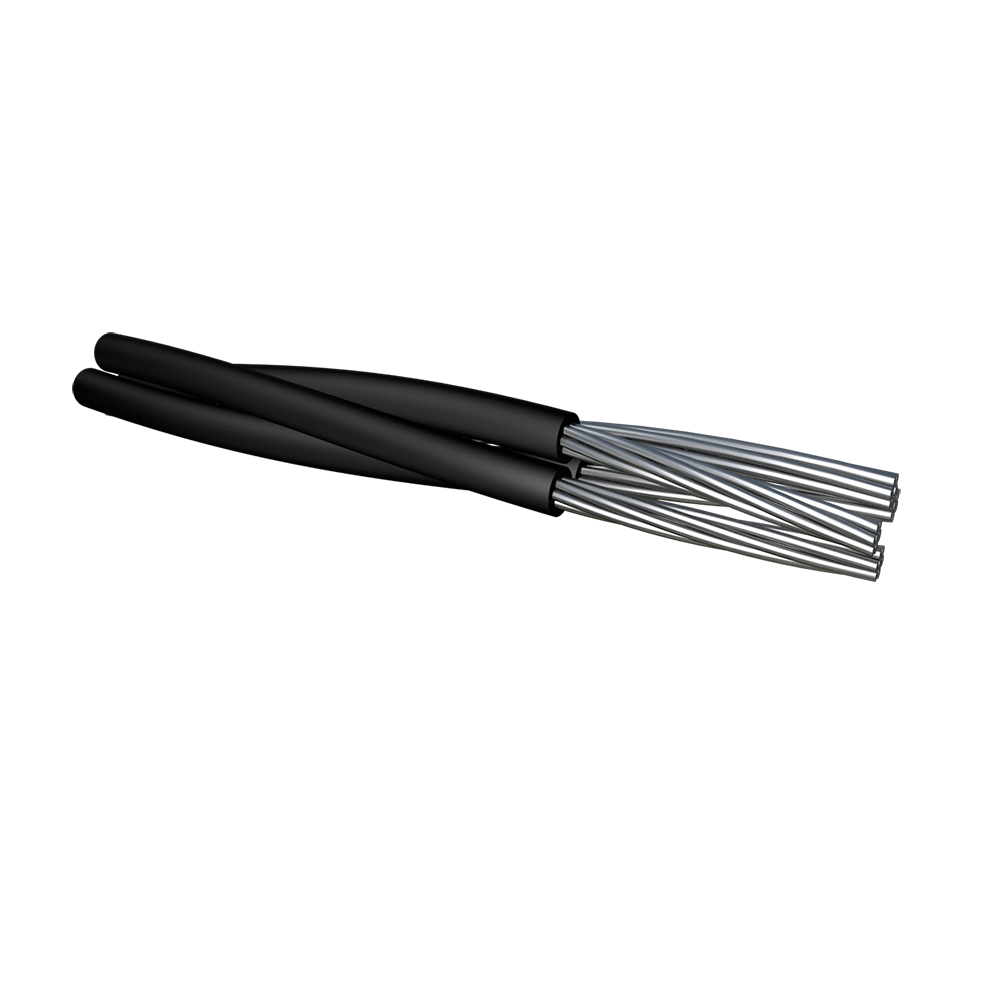

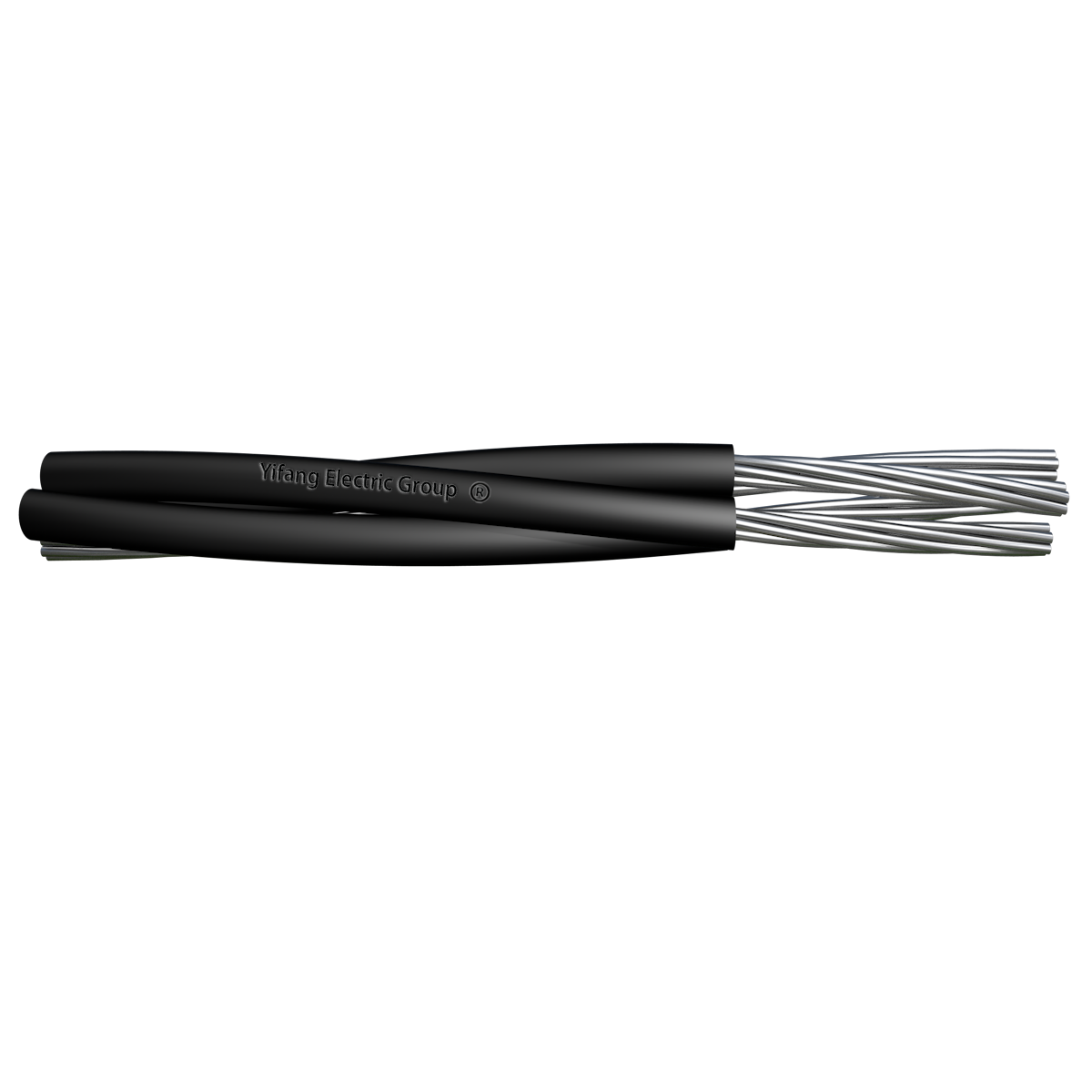

0.6/1KV overhead insulated cables are overhead wires with insulation. The wire appearance is generally black. AAC, AAAC, and ACSR stranded wires are used as the conductive core for the conductor.
The insulating material is weather-resistant XLPE at 90°C or PE at 75°C. Materials with carbon black content greater than 2.0 do not need to be tested for sunlight resistance.
Features
- Good insulation performance
- Good anti-corrosion performance
- Anti-external damage
- The strength meets the requirements.
It can solve the problem of ordinary overhead bare wires in operation, and the price will be cheaper than buried cables.
Application
In urban and rural power grids, road lighting and other lines, it is often used. Lightning-prone areas, places with dense forests and high smoke concentrations will also see it being used
Construction

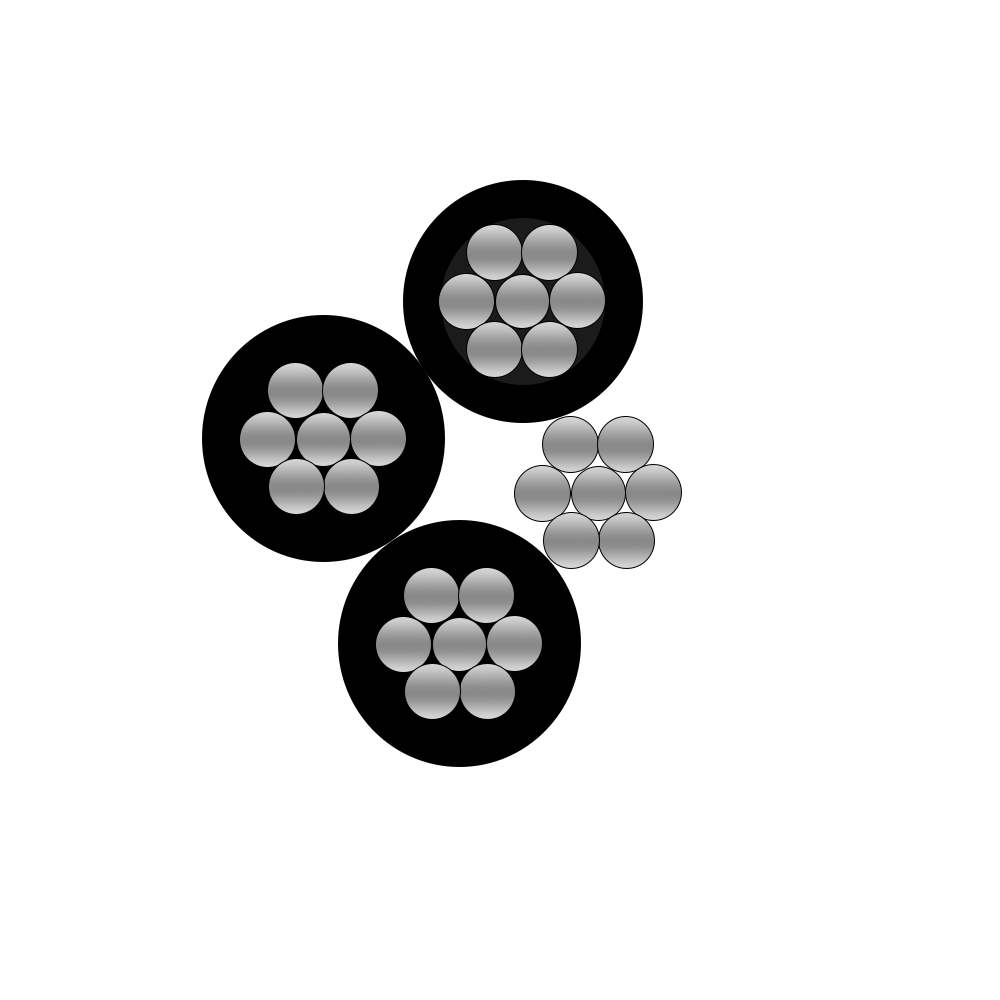

1.conductor
The wire core has a circular cross-section. With the exception of the neutral and load conductors, pure aluminum stranded wires of a purity of at least
Standard ASTM B230 1350 aluminum requirements. The carrying stranded wire is made of ACSR wire, which can be covered with insulation or exposed; the neutral wire is made of XLPE insulated pure aluminum or aluminum alloy stranded wire.

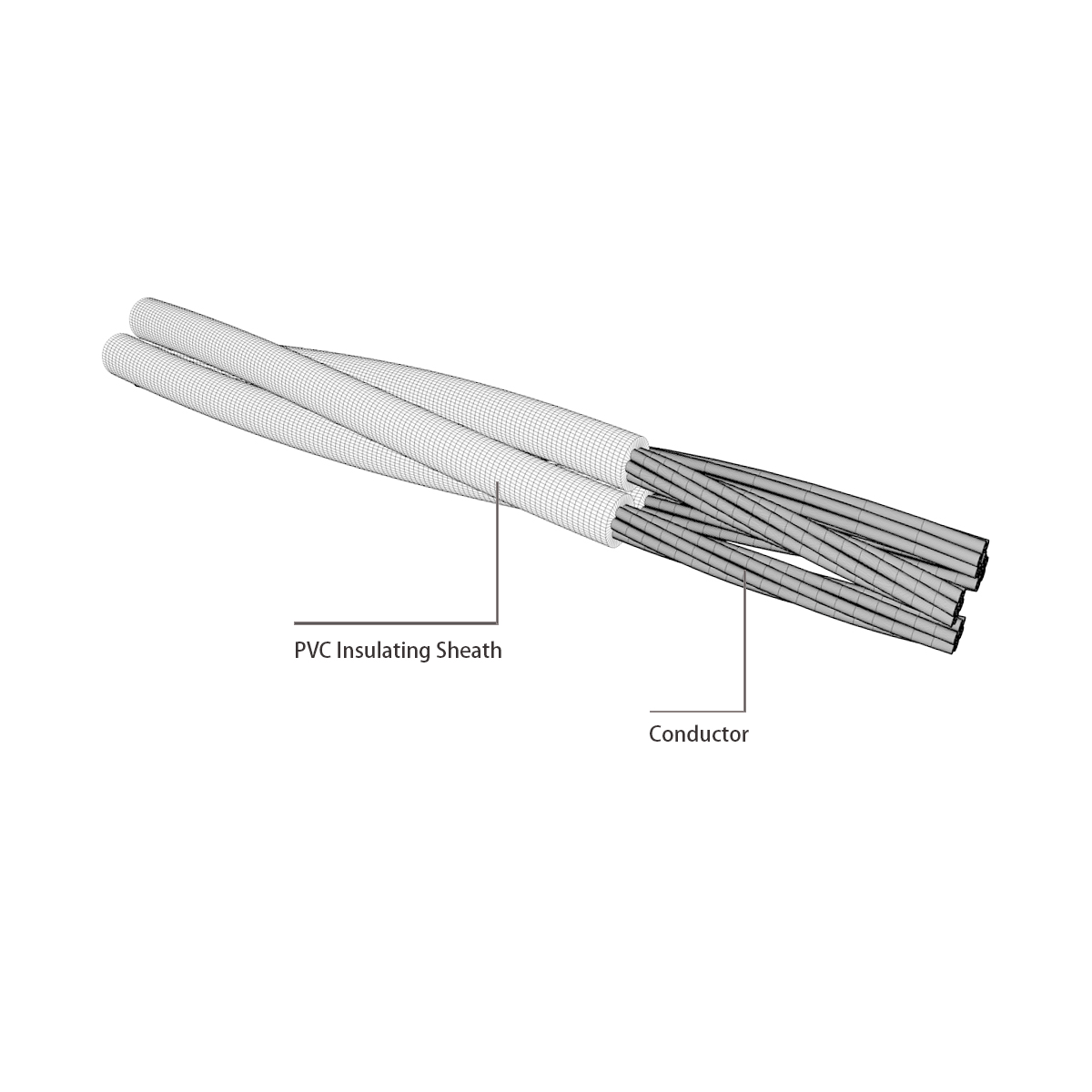

2.Insulation
The insulation consists of extruded XLPE.
3.Cabling
Multi-core cables should be cabled, and the cabled direction and pitch ratio should meet the standard requirements.
Performance
| Code Word | Phase Conducor Size RWG | Phane Condudor Stranding | Phase Conductor insulation Thickness | Bare Neutral Messenger Size AWG | Bare Neutral Messenger Sranding | Bare Neutral Mesenger Brnaking Strength | Weight Per 1000ft-XLP | Weight Per 1000ft Poly | Ampacity XLP | Ampacity Poly |
| Haiotis | 6 | Solid | 45 mls | 6 | 7 | 563 Lbs | 1025Lbs | 98.8 Lbs | 85Amps | 70 Amps |
| Pateba | 6 | 7/w | 45 mls | 6 | 7 | 503 Lbs | 109.1 Lbs | 101.6 Lbs | 85Anps | 70 Amps |
| Fusus | 4 | Soild | 45 mls | 4 | 7 | 881 Lbs | 151.9 Lbs | 147.6Lbs | 115Amps | 90Amps |
| Oyster | 4 | 7/w | 45 mls | 4 | 7 | 881 Lbs | 161.8 Lbs | 151.7 Lbs | 115Amps | 90Amps |
| Clam | 2 | 7/w | 45 mls | 2 | 7 | 1350 Lbs | 243.2Lbs | 229.2Lbs | 150 Amps | 120Amps |
| Murex | 10 | 7/w | 60 mls | 1/0 | 7 | 1990 Lbs | 395.1 Lbs | 369.4 Lbs | 205 Amp | 160Amps |
| Purpura | 10 | 19/w | 60 mls | 1/0 | 7 | 1990 Lbs | 386.1 Lbs | 369.4 Lbs | 205 Amps | 160Amps |
| Nassa | 20 | 7/w | 60 mls | 2/0 | 7 | 2510 Lbs | 485.8 Lbs | 455.3 bs | 235 Amps | 185 Amps |
| Melila | 30 | 19/w | 60 mls | 3/0 | 19 | 3310 Lbs | 585.2 Lbs | 562.9 Lbs | 275 Anps | 215Amps |
| Portunus | 470 | 19/w | 60 mls | 4/0 | 19 | 4020 Lbs | 723.9 Lbs | 697.3 Lbs | 315 Amps | 245Amps |
| Nannynos | 336.4 | 19/w | 80 mls | 336.4 | 19 | 6146 Lbs | 1160.4 Lbs | 1180.0 Lbs | 420 Amps | 325 Amps |
