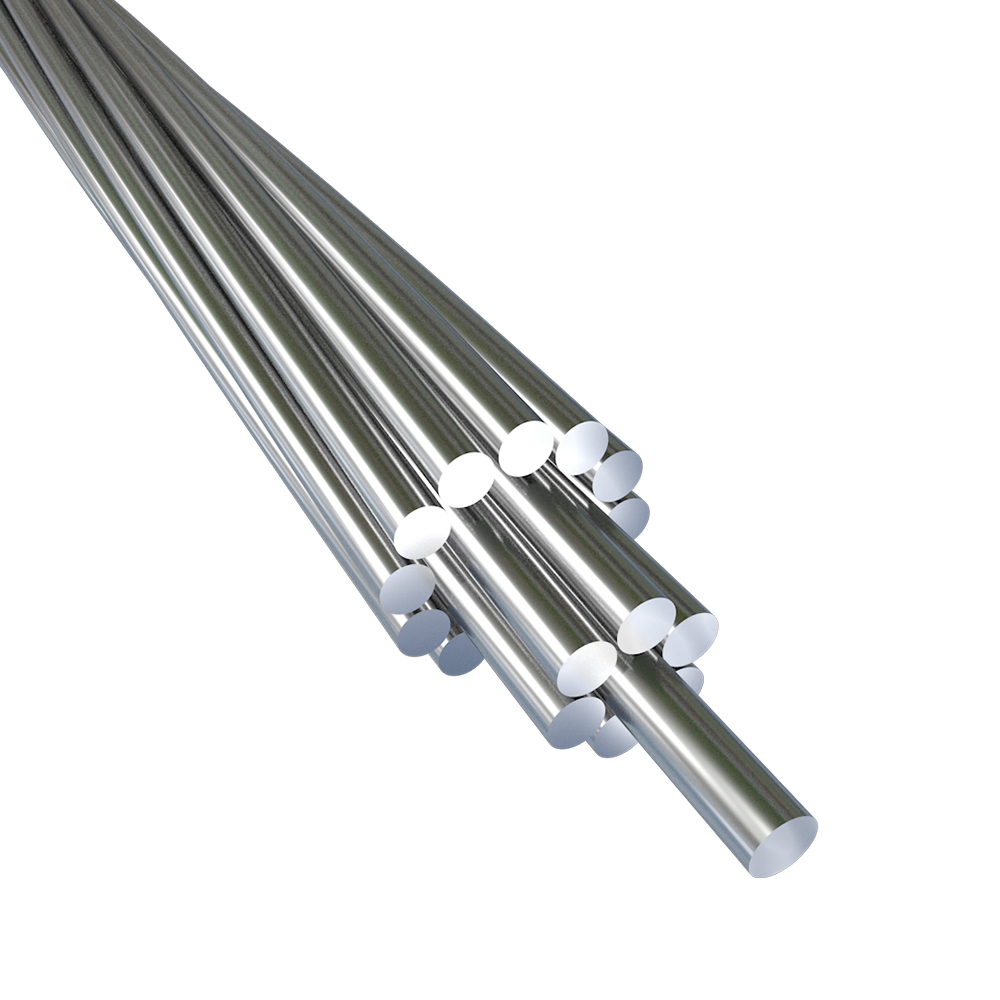

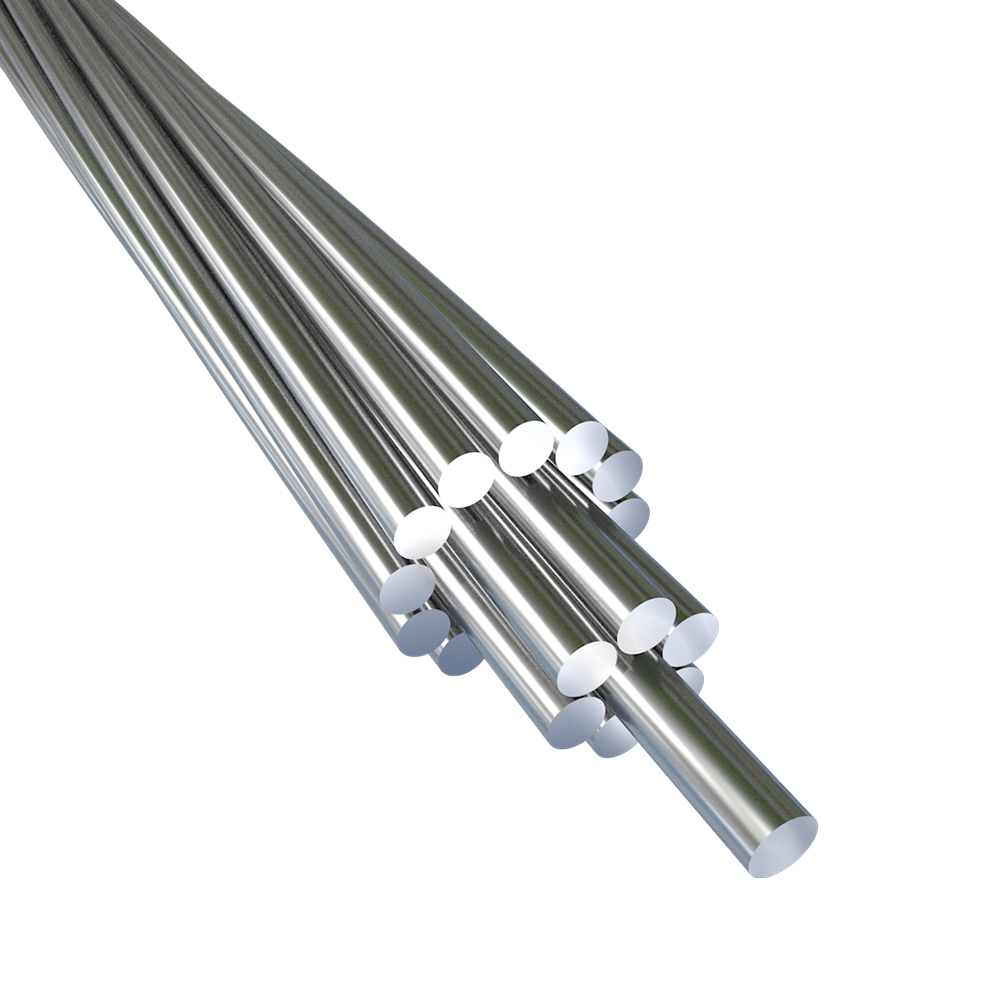

AAAC Conductor consists of aluminum alloy wires. The bare-core stranded conductor is made of heat treated aluminium-magnesium-silicon alloy wires. AAAC DIN48201 Standard specifies the electrical and mechanical characteristics of concentric stranded conductors.

Features

1.Good corrosion resistance

AAAC has good corrosion resistance because it consists only of aluminum alloy wires. It has better corrosion resistance than ACSR.

2.Better strength to weight ratio

Compared with ACSR,AAAC can get better strength to weight ratio and provide improved electrical properties.

Application

This conductor is mainly used for overhead power transmission. AAAC can be used in Medium and High transmission lines of various voltage levels.Now it has been widely used in power lines across large rivers, heavy ice areas and other special geographical features.

Construction

Aluminum alloy wires, concentrically stranded.

Performance

Norminal Size mm2Stranding
No./mm		Calculated Section area mm2Overall diameter mmWeight
kg/mm		Breaking
Load
kN		Max.DC Resistance
at 20℃
 ohm/km		Current Rating
A
167/1.7015.895.1444.442.091105
257/2.1024.256.3676.771.3703135
357/2.5034.367.5949.60.9668170
507/3.0049.48913518.820.6714210
7019/2.1065.8210.518118.380.5073255
9519/2.5093.2712.525626.050.3579320
12019/2.801171432232.680.2854365
15037/2.25147.115.740541.090.2274425
18537/2.50181.617.550150.730.1842490
24061/2.25242.520.267067.740.1383585
30061/2.50299.422.582783.630.112670
40061/2.89400.1261105111.760.0838810
50061/3.23499.829.11381139.60.0671930
62591/2.96626.232.61733174.90.05371075
80091/3.35802.136.82219224.020.04191255
100091/3.74999.741.12766279.220.03361450
