HTA S26 extruded XLPE insulation medium voltage cable NFC33-226 standard

NFC33-226 is a medium voltage power cable with a rated voltage of 12kV to 20kV. The cables are available in single core or 3x1 construction and are suitable for buried, direct burial in soil or free air laying. The cable can be supplied with sheath colors according to the installation code: red for underground connections, gray for aerial, surface/underground and technical applications.

Specifically, product features and parameters of NFC33-226 cables may include:

1.Suitable for medium voltage power system from 12kV to 20kV;

2.Single core or 3x1 (clover) structure available;

3.It can be laid underground, directly buried in soil or in free air;

4.Sheath color can be selected according to installation specifications;

5.Aluminum material as a conductor;

6.XLPE and PE materials as insulation and sheath materials.

Features

1. It can be applied to medium-voltage power systems from 12kV to 20kV, providing an efficient and reliable power transmission solution;
2. Single core or 3x1 structure can be provided according to application requirements, which can meet the needs of different circuit connection methods;
3. It can be laid underground, directly buried in soil or in free air, suitable for different application scenarios;
4. Different colors of sheaths can be selected according to installation specifications, which helps to distinguish different types of cables and realize management and maintenance;
5. Aluminum material is used as the conductor, which is not only light in weight and low in cost, but also has good electrical conductivity, thermal conductivity and corrosion resistance;
6. XLPE and PE materials are used as insulation and sheath materials, which have good performances such as voltage resistance, heat resistance, and welding resistance.

Application

NFC33-226 cables are suitable for medium voltage power systems, with rated voltages between 12kV and 20kV. It can be used as a distribution line to transmit power, lighting and control signals, and can be applied in different scenarios, such as directly buried in the ground, laid in free air or buried in the soil.

More specifically, the application areas of NFC33-226 may include

1.Municipal engineering

Applied in the power distribution network of urban public facilities, streets and other areas

2.Industrial and mining enterprises:

Used in the construction and transformation of power distribution trunk lines in factories, mines and other places;

3.Residential quarters

Used as power distribution lines in residential quarters and villas.

Construction

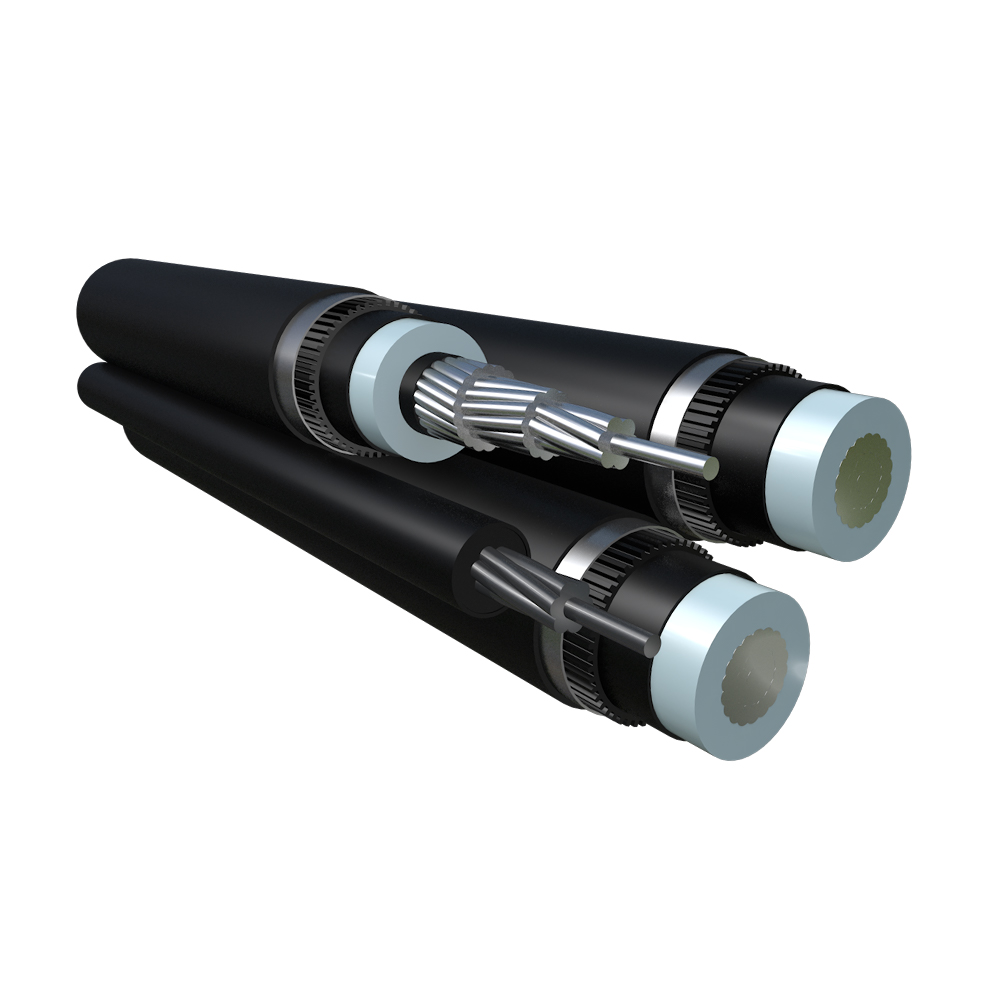

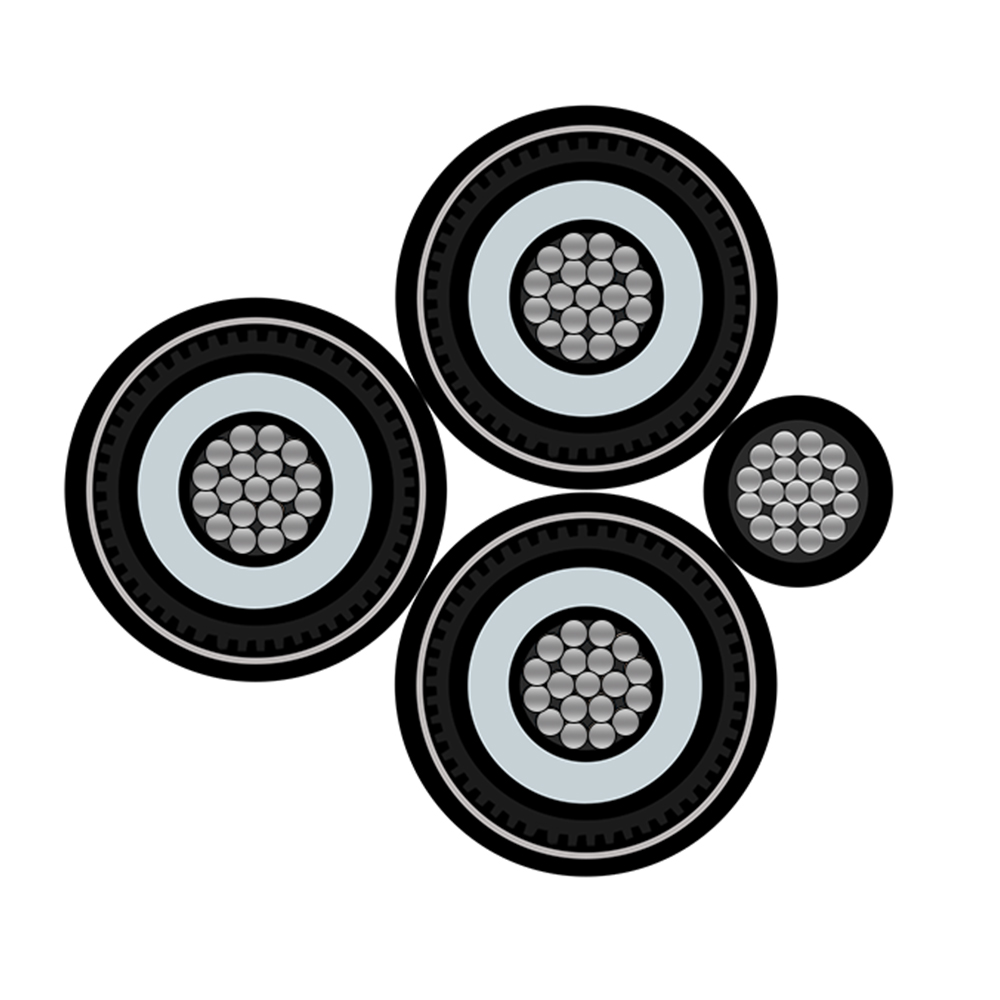

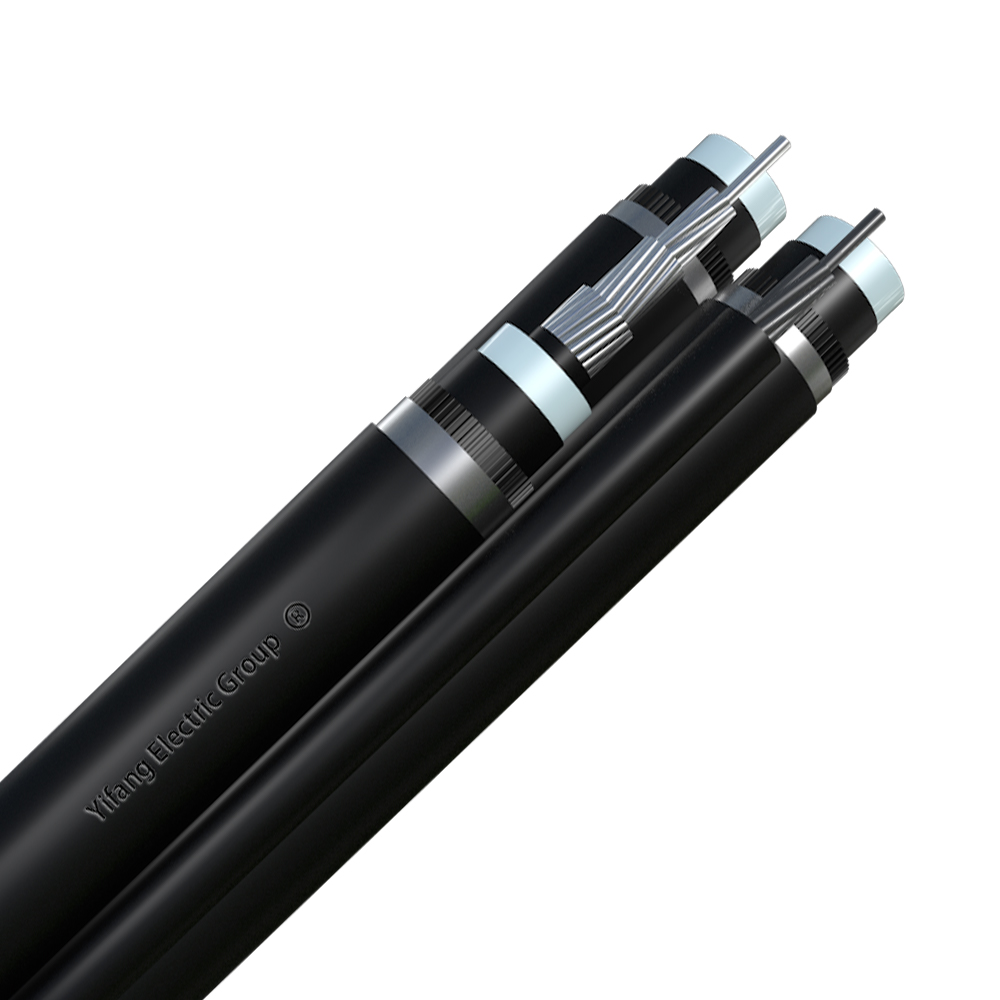

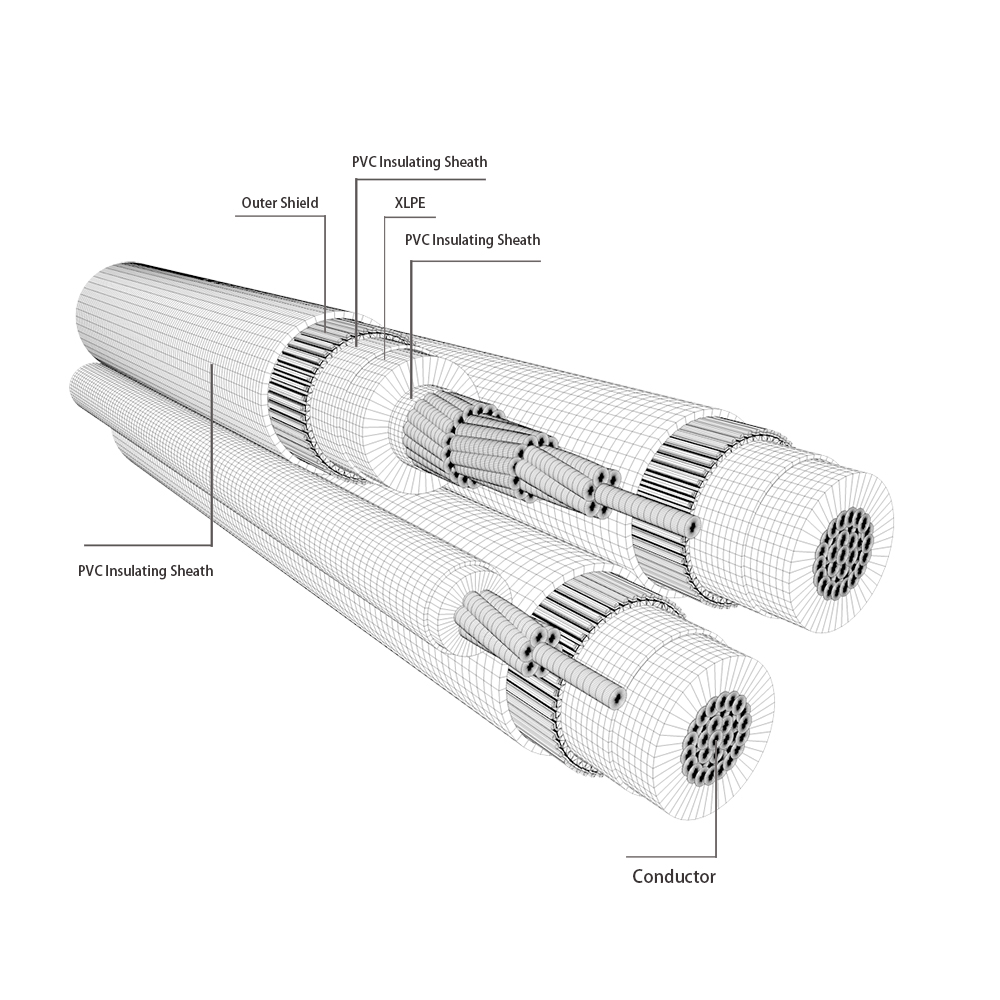

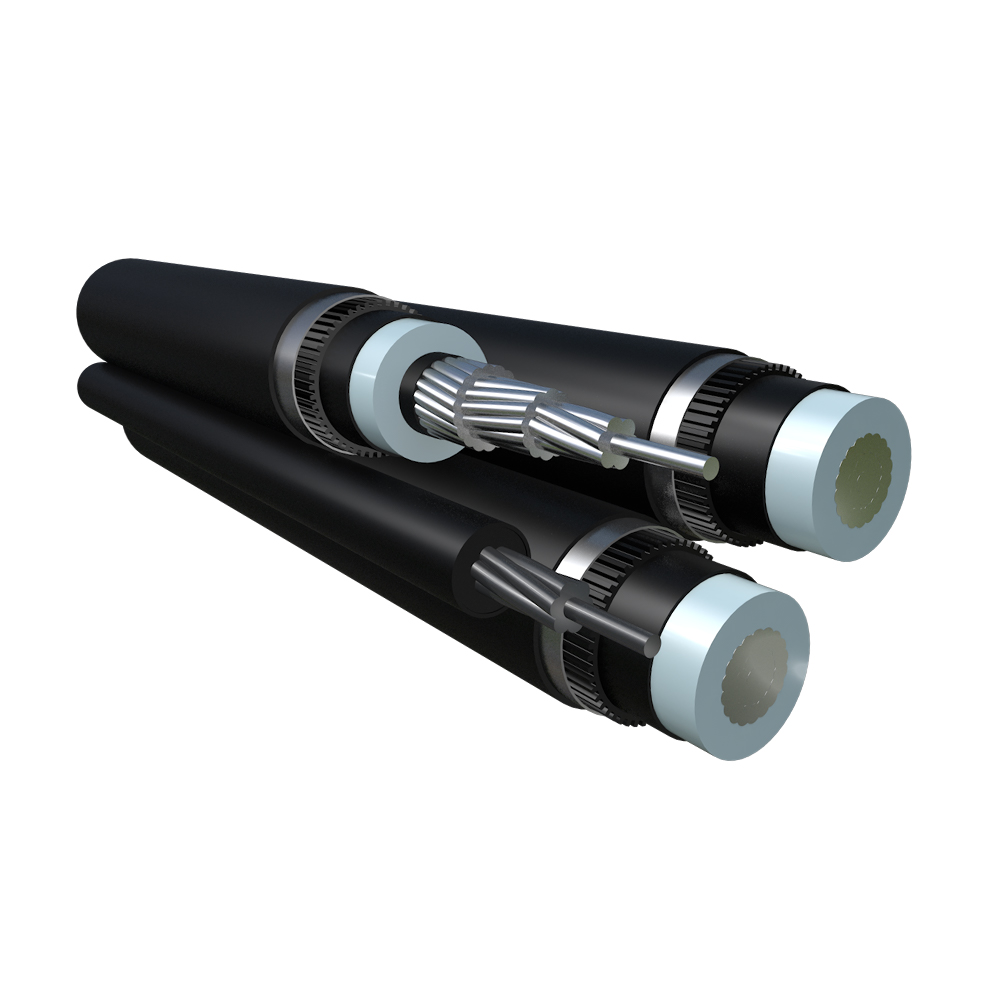

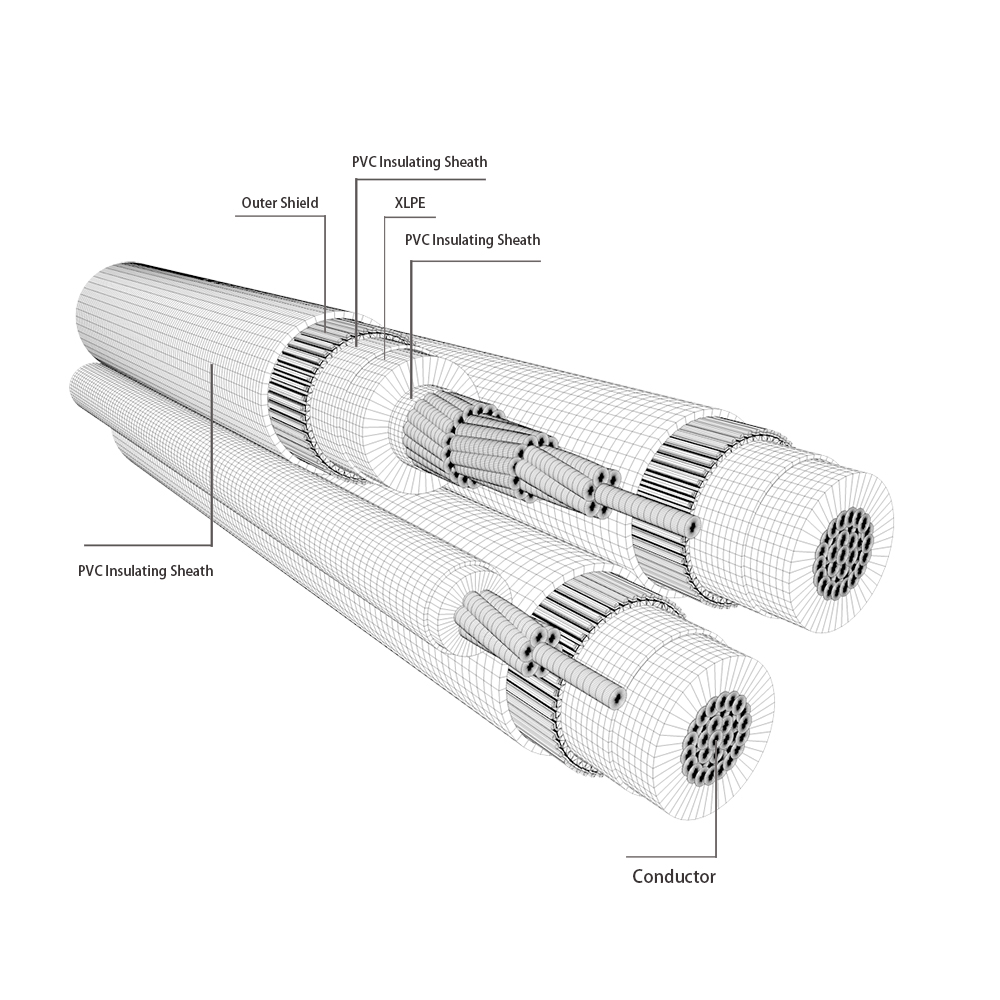

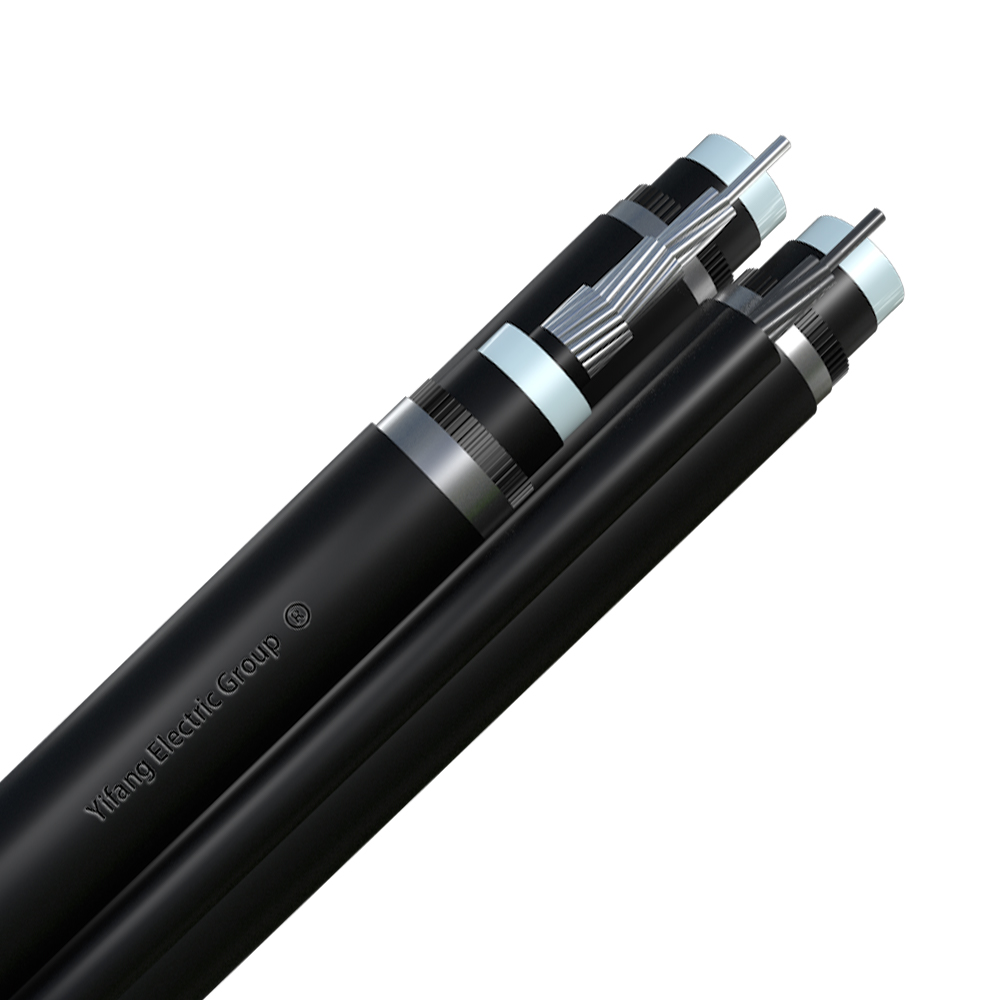

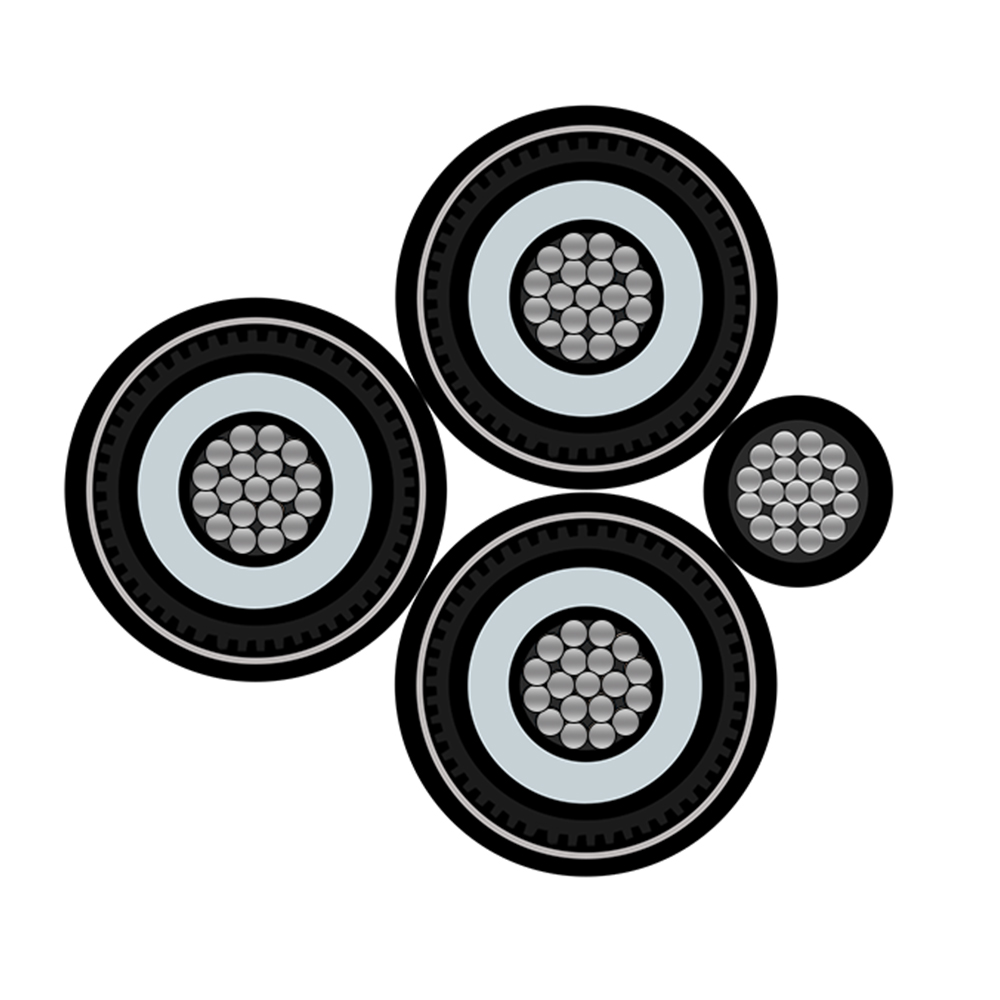

Medium-voltage power cables have shielding and sheathing, and non-magnetic armoring can be used under necessary conditions. Refer to the figure below for the structure of conventional cables.

Performance

Number of cores ×  Cross-section	Nominal thickness of Insulation	Min. outer diameter over sheath	Twisted diameter of cable	Approx. weight	Max. DC resistance at 20℃	Current rating Underground	Current rating In air
								No.×mm2	mm	mm	mm	kg/km	Ohm/km	A	A
3×1×50	3.4	23.1	53.4	2603	0.387	230	235
3×1×70	3.4	24.9	57.5	3316	0.268	285	295
3×1×95	3.4	26.6	61.2	4153	0.193	340	360
3×1×120	3.4	28.3	64.9	4953	0.153	385	420
3×1×150	3.4	29.9	67.9	5815	0.124	430	475
3×1×185	3.4	31.5	72.0	6947	0.0991	485	550
3×1×240	3.4	34.0	77.6	8704	0.0754	560	650

Number of cores ×  Cross-section	Nominal thickness of Insulation	Min. outer diameter over sheath	Twisted diameter of cable	Approx. weight	Max. DC resistance at 20℃	Current rating Underground	Current rating In air
								No.×mm2	mm	mm	mm	kg/km	Ohm/km	A	A
3×1×50	3.4	23.1	53.4	1739	0.641	180	185
3×1×70	3.4	24.9	57.5	2070	0.443	220	230
3×1×95	3.4	26.6	61.2	2420	0.320	260	280
3×1×120	3.4	28.3	64.9	2769	0.253	300	325
3×1×150	3.4	29.9	67.9	3115	0.206	335	370
3×1×185	3.4	31.5	72.0	3574	0.164	380	425
3×1×240	3.4	34.0	77.6	4267	0.125	440	510

Number of cores ×  Cross-section	Nominal thickness of Insulation	Min. outer diameter over sheath	Twisted diameter of cable	Approx. weight	Max. DC resistance at 20℃	Current rating Underground	Current rating In air
								No.×mm2	mm	mm	mm	kg/km	Ohm/km	A	A
3×1×50	4.5	25.5	58.6	2892	0.387	230	245
3×1×70	4.5	27.3	62.7	3626	0.268	280	305
3×1×95	4.5	29.0	66.4	4481	0.193	335	375
3×1×120	4.5	30.7	70.1	5299	0.153	385	425
3×1×150	4.5	32.3	73.1	6176	0.124	430	485
3×1×185	4.5	33.9	77.2	7328	0.0991	490	560
3×1×240	4.5	36.4	82.8	9113	0.0754	560	660

Number of cores ×  Cross-section	Nominal thickness of Insulation	Min. outer diameter over sheath	Twisted diameter of cable	Approx. weight	Max. DC resistance at 20℃	Current rating Underground	Current rating In air
								No.×mm2	mm	mm	mm	kg/km	Ohm/km	A	A
3×1×50	4.5	25.5	58.6	2028	0.641	180	190
3×1×70	4.5	27.3	62.7	2379	0.443	220	235
3×1×95	4.5	29.0	66.4	2748	0.320	260	290
3×1×120	4.5	30.7	70.1	3115	0.253	300	330
3×1×150	4.5	32.3	73.1	3476	0.206	335	375
3×1×185	4.5	33.9	77.2	3955	0.164	380	430
3×1×240	4.5	36.4	82.8	4676	0.125	440	510

Number of cores ×  Cross-section	Nominal thickness of Insulation	Min. outer diameter over sheath	Twisted diameter of cable	Approx. weight	Max. DC resistance at 20℃	Current rating Underground	Current rating In air
								No.×mm2	mm	mm	mm	kg/km	Ohm/km	A	A
3×1×50	5.5	28.0	63.4	3180	0.387	230	245
3×1×70	5.5	29.5	67.5	3932	0.268	280	305
3×1×95	5.5	31.2	71.2	4804	0.193	335	375
3×1×120	5.5	32.9	74.9	5639	0.153	385	425
3×1×150	5.5	34.5	77.9	6530	0.124	430	485
3×1×185	5.5	36.1	82.0	7701	0.0991	490	560
3×1×240	5.5	38.6	87.6	9511	0.0754	560	660

Number of cores ×  Cross-section	Nominal thickness of Insulation	Min. outer diameter over sheath	Twisted diameter of cable	Approx. weight	Max. DC resistance at 20℃	Current rating Underground	Current rating In air
								No.×mm2	mm	mm	mm	kg/km	Ohm/km	A	A
3×1×50	5.5	28.0	63.4	2316	0.641	180	190
3×1×70	5.5	29.5	67.5	2685	0.443	220	235
3×1×95	5.5	31.2	71.2	3071	0.320	260	290
3×1×120	5.5	32.9	74.9	3455	0.253	300	330
3×1×150	5.5	34.5	77.9	3830	0.206	335	375
3×1×185	5.5	36.1	82.0	4328	0.164	380	430
3×1×240	5.5	38.6	87.6	5074	0.125	440	510

Number of cores ×  Cross-section	Nominal thickness of Insulation	Min. outer diameter over sheath	Twisted diameter of cable	Approx. weight	Max. DC resistance at 20℃	Current rating Underground	Current rating In air
								No.×mm2	mm	mm	mm	kg/km	Ohm/km	A	A
3×1×50	8.0	33.1	75.2	3979	0.387	230	245
3×1×70	8.0	34.9	79.2	4777	0.268	280	305
3×1×95	8.0	36.8	83.4	5725	0.193	335	375
3×1×120	8.0	38.3	86.6	6565	0.153	385	425
3×1×150	8.0	39.9	89.6	7491	0.124	430	485
3×1×185	8.0	41.5	93.7	8707	0.0991	490	560
3×1×240	8.0	44.0	99.3	10579	0.0754	560	660

Number of cores ×  Cross-section	Nominal thickness of Insulation	Min. outer diameter over sheath	Twisted diameter of cable	Approx. weight	Max. DC resistance at 20℃	Current rating Underground	Current rating In air
								No.×mm2	mm	mm	mm	kg/km	Ohm/km	A	A
3×1×50	8.0	33.1	75.2	3115	0.641	180	190
3×1×70	8.0	34.9	79.2	3530	0.443	220	235
3×1×95	8.0	36.8	83.4	3992	0.320	260	290
3×1×120	8.0	38.3	86.6	4381	0.253	300	330
3×1×150	8.0	39.9	89.6	4790	0.206	335	375
3×1×185	8.0	41.5	93.7	5334	0.164	380	430
3×1×240	8.0	44.0	99.3	6143	0.125	440	510
