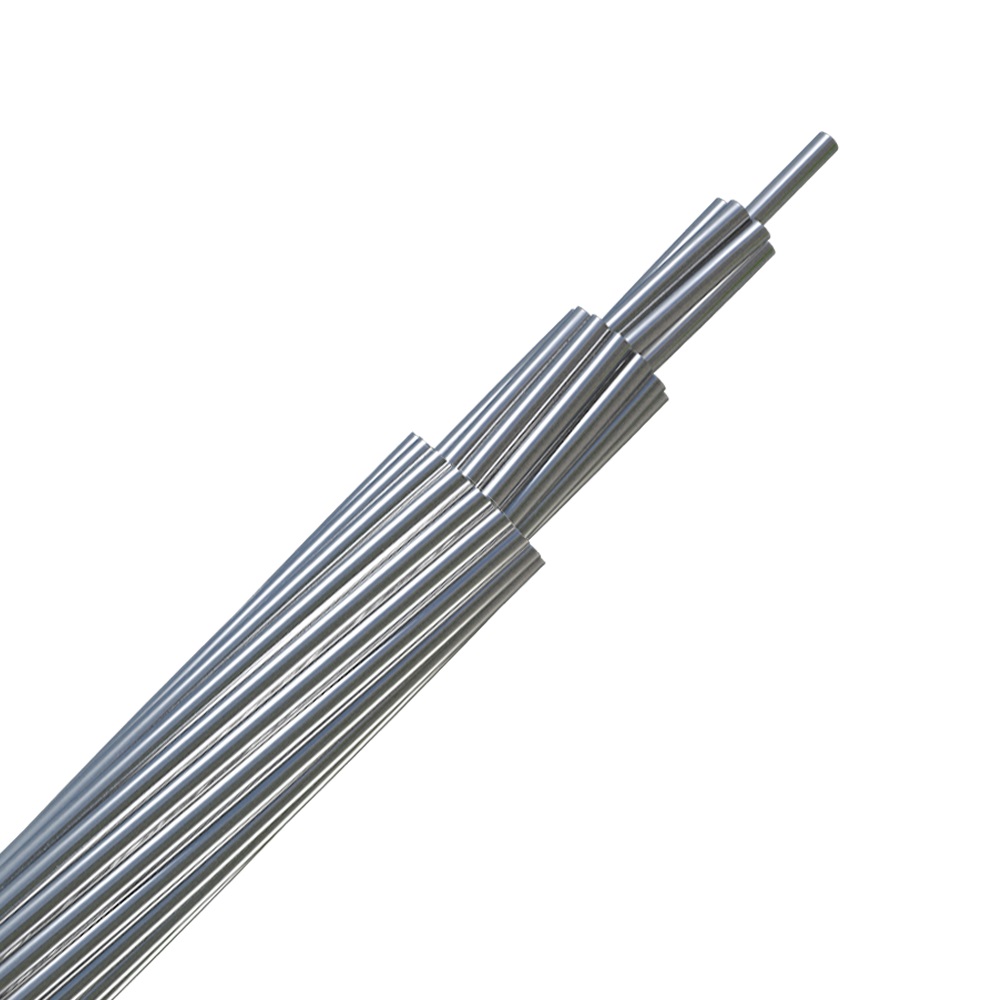

The full name of ACSR is aluminum conductor steel reinforced.ACSR is a kind of bare wire without sheath.The ACSR conductor can be designed in such a way that the inside of the conductor is made of steel and the exterior of the conductor is made of pure aluminum, providing the conductor with additional strength to maintain its weight.
ACSR is a wire with simple structure, low line cost, convenient erection and maintenance, large transmission capacity, and is conducive to laying across special geographical conditions such as rivers and valleys.
Features
ACSR has the characteristics of simple structure, low line cost, convenient erection and maintenance, large transmission capacity, and is conducive to laying across rivers and valleys and other special geographical conditions. At the same time, it has good electrical conductivity and sufficient mechanical strength, tensile strength High strength, the distance between tower poles can be enlarged, etc.
Application
The primary application for ACSR, a high-capacity stranded conductor, is overhead power lines.
ACSR is widely used in overhead transmission and distribution lines of various voltage levels.Due to its reliability and strength-to-weight ratio, ACSR is suitable for all practical spans of timber poles, transmission towers and other structures.
Construction

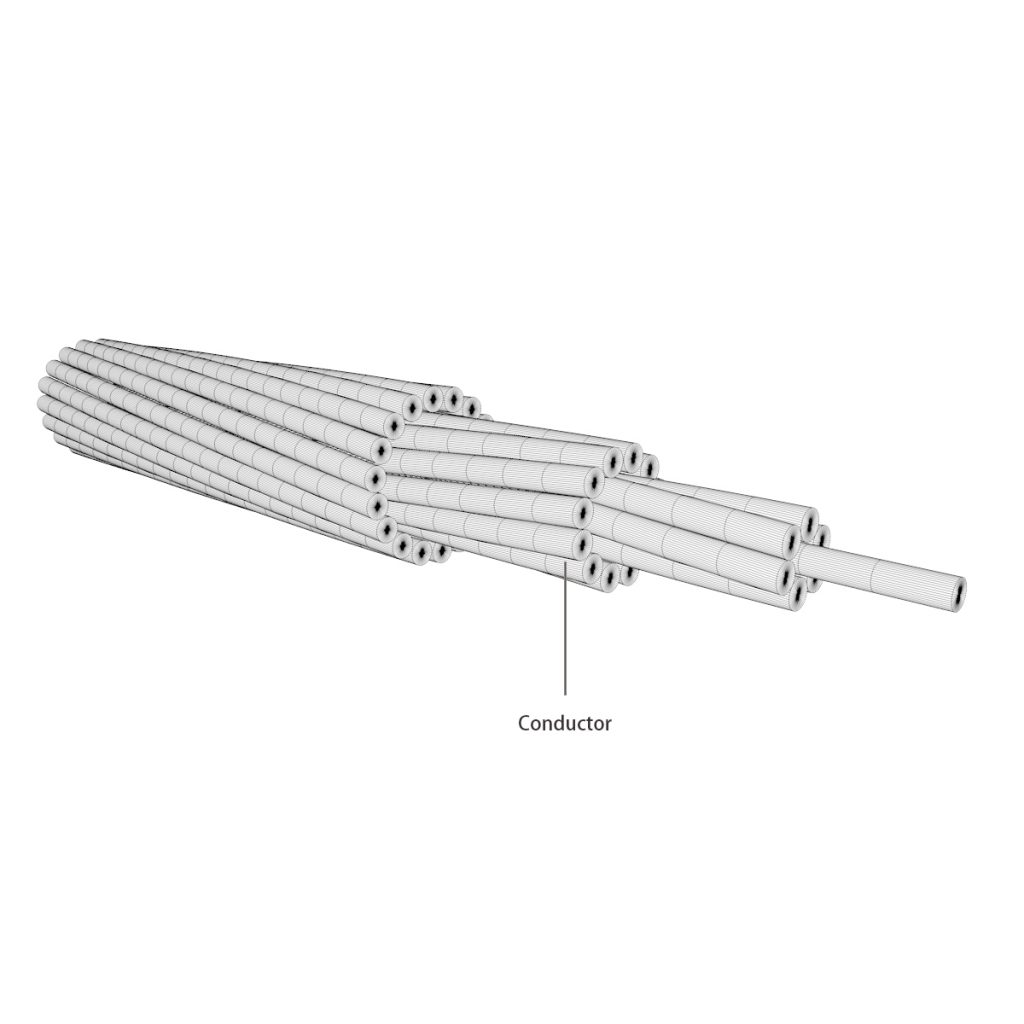

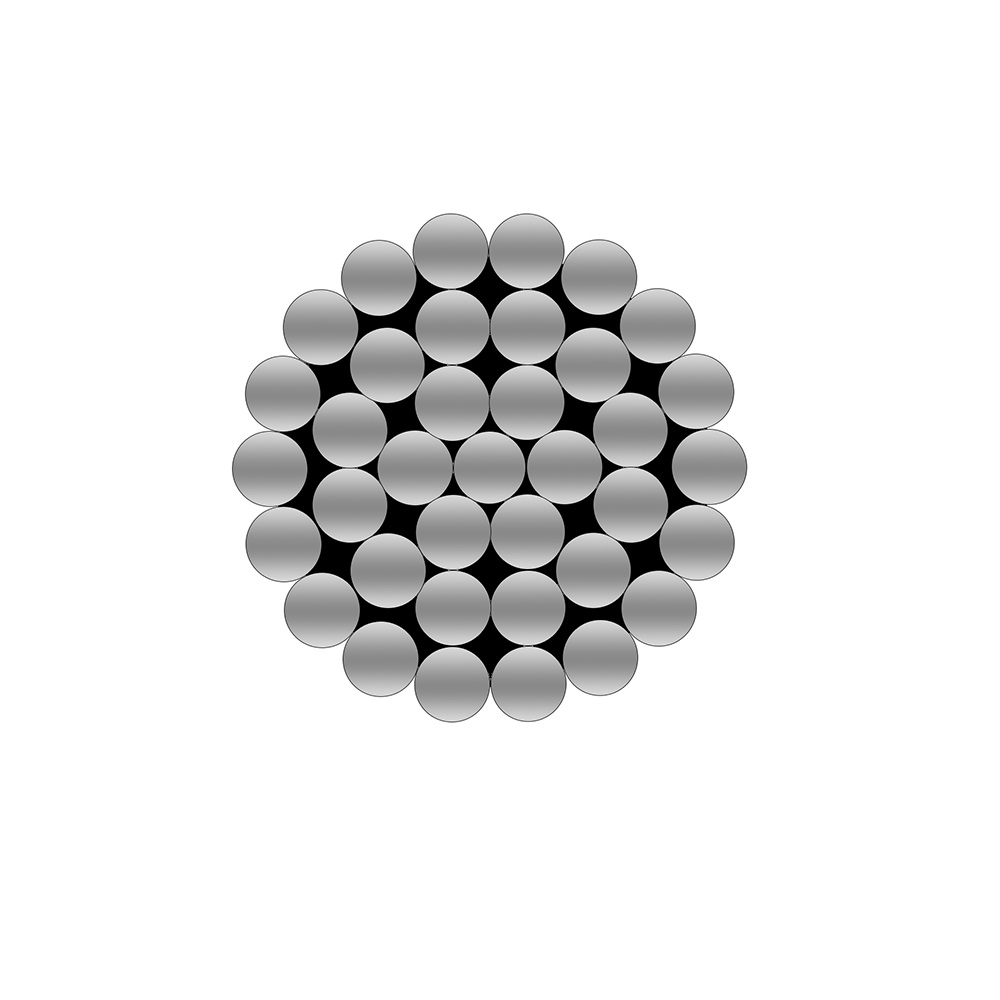

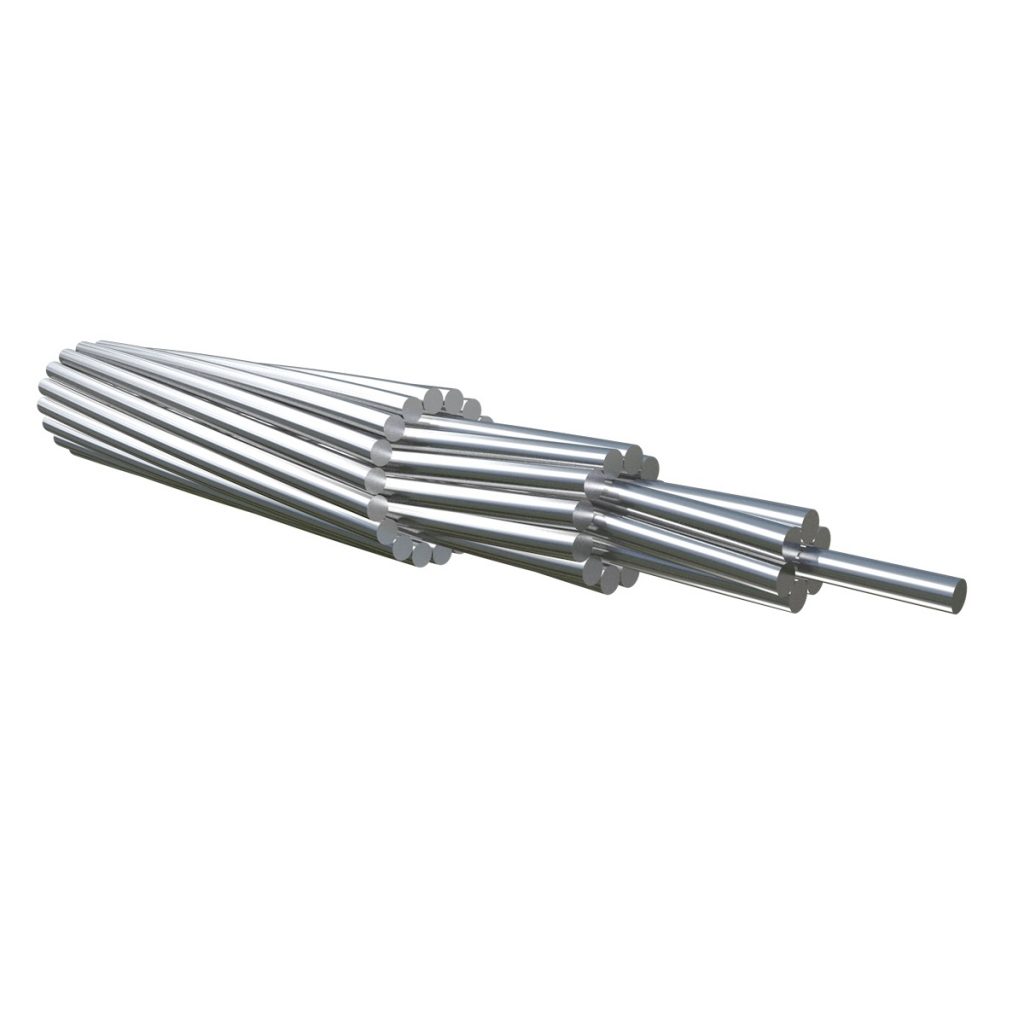

ACSR is made of multiple non-insulated single wires twisted together, the inside is a steel "core", and the outside is twisted with aluminum wires around the steel core; the steel core mainly plays the role of increasing strength, and the aluminum stranded wire mainly plays the role of The role of transmitting electrical energy.
Performance
| Code | Old code | Cross-sectional area Aluminum Mm2 | Cross-sectional area Steel Mm2 | Cross-sectional area Overall Mm2 | Number of strands Aluminum | Number of strands steel | Single wire Diameter Aluminum mm | Single wire Diameter Steel mm | Diameter Core mm | Diameter Conductor mm | Kg/km | Rated Breaking force kN | DC Resistance Ω/km |
| 11-ALI/2-STIA | MOLE | 10.6 | 1.77 | 12.4 | 6 | 1 | 1.50 | 1.50 | 1.5 | 4.50 | 42.8 | 4.14 | 2.7007 |
| 21-ALI/3-STIA | SQUIRREL | 21.0 | 3.50 | 24.5 | 6 | 1 | 2.11 | 2.11 | 2.11 | 6.33 | 84.7 | 7.87 | 1.3669 |
| 26-AL1/4-STIA | GOPER | 26.2 | 4.37 | 30.6 | 6 | 1 | 2.36 | 2.36 | 2.36 | 7.08 | 106.0 | 9.58 | 1.0919 |
| 32-AL1/5-STIA | WEASEL | 31.6 | 5.27 | 36.9 | 6 | I | 2.59 | 2.59 | 2.59 | 7.77 | 127.6 | 11.38 | 0.9065 |
| 37-AL1/6-STIA | FOX | 36.7 | 6.11 | 42.8 | 6 | 1 | 2.79 | 2.79 | 2.79 | 8.37 | 148.1 | 13.21 | 0.7812 |
| 43-ALI/7-STIA | FERRET | 42.4 | 7.07 | 49.5 | 6 | 1 | 3.00 | 3.00 | 3.00 | 9.00 | 171.2 | 15.27 | 0.6757 |
| 53-ALI/9-STIA | BABBIT | 52.9 | 8.81 | 61.7 | 6 | 1 | 3.35 | 3.35 | 3.35 | 10.1 | 213.5 | 18.42 | 0.5419 |
| 63-ALI/11-STIA | MINK | 63.1 | 10.5 | 73.6 | 6 | 1 | 3.66 | 3.66 | 3.66 | 11.0 | 254.9 | 21.67 | 0.4540 |
| 63-ALI/37-STIA | SKUNK | 63.2 | 36.9 | 100.1 | 12 | 7 | 2.59 | 2.59 | 2.59 | 13.0 | 463 0 | 52.79 | 0.4568 |
| 75-AL1/13-STIA | BEAVER | 75.0 | 12.5 | 87.5 | 6 | 1 | 3.99 | 3.99 | 3.99 | 12.0 | 302.9 | 25.76 | 0.3820 |
| 73-ALI/43-STIA | HORSE | 73.4 | 42.8 | 116.2 | 12 | 7 | 2.79 | 2.79 | 8.37 | 14.0 | 537.3 | 61.26 | 0.3936 |
| 79-ALI/I3-STIA | RACOON | 78.8 | 13.1 | 92.0 | 6 | 1 | 4.09 | 4.09 | 4.00 | 12.3 | 318.3 | 27.06 | 0.3635 |
| 84-ALI/14-STIA | OTTER | 83.9 | 14.0 | 97.9 | 6 | 1 | 4.22 | 4.22 | 4.22 | 12.7 | 338.8 | 28.81 | 0.3415 |
| 95-ALI/16-STIA | CAT | 95.4 | 15.9 | 111.3 | 6 | 1 | 4.50 | 4.50 | 4.50 | 13.3 | 385.3 | 32.76 | 0.3003 |
| 105-ALI/17-ST1A | HARE | 105.0 | 17.5 | 122.5 | 6 | 1 | 4.72 | 4.72 | 4.72 | 14.2 | 423.8 | 36.04 | 0.2730 |
| 105-ALI/14-ST1A | DOG | 105.0 | 13.6 | 118.5 | 6 | 7 | 4.72 | 1.57 | 4.71 | 14.2 | 394.0 | 12.65 | 0.2733 |
| 132-ALI/20-ST1A | COYOTE | 131.7 | 20.1 | 151.8 | 26 | 7 | 2.54 | 1.91 | 5.73 | 15.9 | 520.7 | 45.86 | 0.2192 |
| 132-AL1/7-STIA | COUGAR | 131.5 | 7.31 | 138.8 | 18 | 1 | 3.05 | 3.05 | 3.05 | 15.3 | 418.8 | 29.74 | 0.2188 |
| 131-AL1/31-ST1A | TIGER | 131.2 | 30.6 | 161.9 | 30 | 7 | 2.36 | 2.36 | 7.08 | 16.5 | 602.2 | 57.87 | 0.2202 |
| 158-ALI/37-ST1A | WOLP | 158.1 | 36.9 | 194.9 | 30 | 7 | 2.59 | 2.59 | 7.77 | 18.1 | 725.3 | 68.91 | 0.1829 |
| 159-AL1/9-STIA | DINOO | 158.7 | 8.81 | 167.5 | 18 | 1 | 3.35 | 3.35 | 3.35 | 16.8 | 505.2 | 35.87 | 0.1814 |
| 183-AL1/43-ST1A | LYNX | 183.4 | 42.8 | 226.2 | 30 | 7 | 2.79 | 2.79 | 8.37 | 19.5 | 841.6 | 79.97 | 0.1576 |
| 184-AL1/10-ST1A | CARACAL | 184.2 | 10.2 | 194.5 | 18 | 1 | 3.61 | 3.61 | 3.61 | 18.1 | 586. 7 | 40.74 | 0.1562 |
| 212-ALI/49-ASTIA | PANTHER | 212.1 | 49.5 | 261.5 | 30 | 7 | 3.00 | 3.00 | 9.00 | 21.0 | 973.1 | 92.46 | 0.1560 |
| 211-ALI/12-STIA | IAGUAR | 210.6 | 11.7 | 222.3 | 18 | 1 | 3.86 | 3.86 | 3.86 | 19.3 | 670.8 | 46.57 | 0.1366 |
| 238-AL1/56-STIA | LION | 238.3 | 55.6 | 293.9 | 30 | 7 | 3.18 | 1.18 | 9.54 | 22.3 | 1093.4 | 100.47 | 0.1213 |
| 264-ALI/62-ST1A | BEAR | 264.4 | 61.7 | 326.1 | 30 | 7 | 3.35 | 3.35 | 10.1 | 23.5 | 1213.4 | 111.50 | 0.1093 |
| 324-ALI/76-STIA | GOAT | 324.3 | 75.7 | 400.0 | 30 | 7 | 3.71 | 3.71 | 11.1 | 26.0 | 1488.2 | 135. 13 | 0.0891 |
| 375-AL1/88-ST1A | SHEP | 375.1 | 87.5 | 462.6 | 30 | 7 | 3.99 | 3.99 | 12.0 | 27.9 | 1721.3 | 156.30 | 0.0771 |
| 374-AL1/48-STIA | ANTELOPE | 374.1 | 48.5 | 422.6 | 54 | 7 | 2.97 | 2.97 | 8.91 | 26.7 | 1413.8 | 118.88 | 0.0773 |
| 382-ALI/49-STIA | DMSON | 381.7 | 49.5 | 431.2 | 54 | 7 | 3.00 | 3.00 | 9.00 | 27.0 | 1442.5 | 121.30 | 0.0758 |
| 430-AL1/100-5TIA | DEER | 429.6 | 100.2 | 529.8 | 30 | 7 | 4.27 | 4.27 | 12.8 | 29.9 | 1971.4 | 179.03 | 0.0673 |
| 429-AL1/156-STIA | ZEBRA | 428.9 | 55.6 | 484.5 | 54 | 7 | 3.18 | 3.18 | 9.54 | 28.6 | 1620.8 | 131.92 | 0.0674 |
| 477-ALI/111-ST1A | ELK | 477.1 | 111.3 | 588.5 | 30 | 7 | 4.50 | 4.50 | 13.5 | 31.5 | 2189.5 | 198.80 | 0.06O6 |
| 476-ALI/62-STIA | CAMEL | 476.0 | 61.7 | 537.7 | 54 | 7 | 3.35 | 1.35 | 10.1 | 30.2 | 1798.8 | 146.40 | 0.0608 |
